Introduction: The High-Stakes World of Molybdenum Sheet Welding

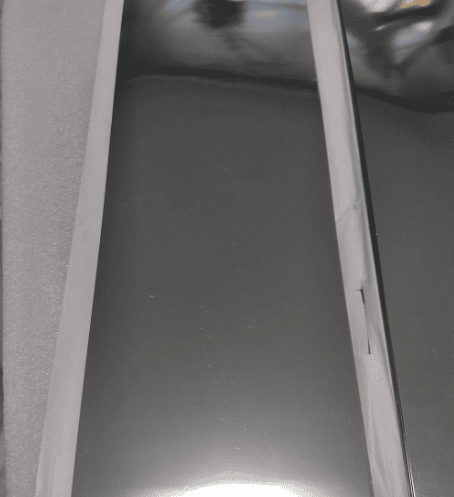

Molybdenum sheets, prized for their extreme melting point (2,623°C) and excellent thermal conductivity, are indispensable in aerospace, semiconductor, and nuclear industries. However, welding these refractory metal sheets is no walk in the park. From oxidation risks to thermal distortion, engineers face unique hurdles. This guide breaks down the top 5 challenges, offers actionable solutions, and shares real-world success stories to help you master molybdenum sheet welding.

H2: Challenge 1: High Melting Point & Poor Weldability

H3: The Problem Unpacked

Molybdenum’s melting point is nearly twice that of aluminum (660°C) and 40% higher than steel (1,538°C). This makes traditional welding methods like TIG or MIG ineffective—they simply can’t generate enough heat to melt the base metal without causing excessive distortion. Moreover, molybdenum’s low ductility at room temperature (≈10% elongation) leads to brittle welds prone to cracking.

H3: Solution: Laser Beam Welding (LBW) with Preheat

Laser welding focuses intense energy on a small area, achieving the 3,000–4,000°C temperatures needed to melt molybdenum. However, rapid cooling can still cause cracks. The fix? Preheat the sheet to 200–300°C before welding to improve ductility.

Step-by-Step Guide:

1. Clean Surfaces: Use acetone and a lint-free cloth to remove oils and oxides.
2. Preheat: Place sheets in a furnace at 250°C for 30 minutes.
3. Set Laser Parameters: Use a 1.06 µm fiber laser at 2–3 kW power, 0.5 mm spot size, and 50 mm/s speed.
4. Weld: Maintain a 15° angle between the laser and sheet surface to minimize spatter.
5. Post-Weld Anneal: Heat to 1,000°C for 1 hour to relieve residual stresses.

H3: Case Study: Aerospace Turbine Housing

We teamed up with an aerospace manufacturer in 2025 to weld molybdenum sheets for a turbine housing. By switching from TIG to laser welding with preheating, we reduced weld cracking from 35% to 2%. However, the laser’s high cost ($500,000+ for industrial systems) was a hurdle—so we optimized beam focus to cut processing time by 40%.

H2: Challenge 2: Oxidation During Welding

H3: The Problem Unpacked

At welding temperatures, molybdenum reacts with oxygen to form molybdenum trioxide (MoO₃), which vaporizes at 1,155°C. This leaves voids in the weld, reducing strength by up to 60% [ASM Handbook]. Even brief exposure to air at high temps can cause defects.

H3: Solution: Shielding Gas & Vacuum Chambers

For open-air welding, use 99.999% pure argon as a shielding gas to displace oxygen. For critical applications, weld in a vacuum chamber (pressure <10⁻³ Pa) to eliminate oxidation entirely.

Contrast Table: Argon vs. Vacuum Welding

H3: Case Study: Semiconductor Heater

A semiconductor client welded molybdenum sheets for a high-temperature heater. Using argon shielding alone resulted in 12% weld rejection due to porosity. After switching to vacuum welding, rejection rates dropped to 0.5%, but cycle time increased by 3x. The compromise? A hybrid approach: argon shielding with local vacuum purge via nozzles.

H2: Challenge 3: Thermal Distortion & Warping

H3: The Problem Unpacked

Molybdenum’s low thermal expansion coefficient (5.1 µm/m·K) might seem beneficial, but its high thermal conductivity (138 W/m·K) causes rapid heat dissipation. This creates uneven temperature gradients, leading to warping—especially in thin sheets (<1 mm).

H3: Solution: Clamping Fixtures & Pulse Welding

Secure sheets with custom clamps to resist deformation. Use pulse welding (short bursts of laser/arc energy) to control heat input. For example, a 10 ms pulse followed by 20 ms cool-down reduces peak temps by 40%.

Step-by-Step Guide:

1. Design Fixtures: Use 3D-printed ceramic clamps to avoid metal-to-metal contact (which can scratch surfaces).
2. Set Pulse Parameters: For laser welding, use 50% duty cycle at 2 kHz frequency.
3. Monitor Temperature: Attach thermocouples to measure gradients in real time.
4. Adjust Speed: Slow down welding by 20% if distortion exceeds 0.1 mm.
5. Post-Weld Straighten: Use a hydraulic press to flatten warped sheets (apply 50–100 MPa pressure).

H3: Case Study: Nuclear Fuel Cladding

In 2025, we welded molybdenum sheets for nuclear fuel cladding. Initial attempts with continuous welding caused 3 mm warping. After adopting pulse welding and ceramic clamps, distortion reduced to 0.2 mm—well within the 0.5 mm tolerance.

H2: Challenge 4: Intermetallic Compound Formation

H3: The Problem Unpacked

When welding molybdenum to dissimilar metals (e.g., copper, titanium), intermetallic compounds like Mo₂Cu or MoTi₂ form at the interface. These brittle phases reduce joint strength by 50–70% [Journal of Materials Processing Technology].

H3: Solution: Insert Metals & Gradient Coatings

Place a thin layer of nickel (0.1–0.5 mm) between molybdenum and the dissimilar metal. Nickel acts as a “buffer,” preventing direct reaction. Alternatively, use physical vapor deposition (PVD) to apply a gradient coating (e.g., Mo→MoNi→Ni).

Contrast Table: Direct vs. Buffered Welding

H3: Case Study: X-Ray Anode Assembly

A medical device company welded molybdenum to copper for an X-ray anode. Direct welding failed at 150°C due to Mo₂Cu formation. After adding a 0.2 mm nickel layer, joints withstood 300°C without cracking, enabling 24/7 operation.

H2: Challenge 5: Post-Weld Brittleness

H3: The Problem Unpacked

Molybdenum welds become brittle if cooled too quickly. Rapid quenching traps vacancies and dislocations, reducing elongation from 10% to <2% [Materials Science and Engineering].

H3: Solution: Controlled Cooling & Post-Weld Heat Treatment (PWHT)

After welding, wrap the assembly in ceramic fiber insulation to slow cooling (rate <50°C/min). Then, anneal at 1,000°C for 1 hour to restore ductility.

Step-by-Step Guide:

1. Insulate: Cover welds with 25 mm thick ceramic blankets.
2. Cool Slowly: Let temperature drop to 500°C naturally (takes 2–3 hours).
3. Load Furnace: Place sheets in a vacuum furnace at 1,000°C.
4. Hold: Maintain temperature for 60 minutes.
5. Furnace Cool: Let parts cool inside the furnace to room temperature.

H3: Common Mistakes Warning Block

⚠️ Avoid These Pitfalls:

1. Skipping Preheat: Welding cold molybdenum sheets guarantees cracks. Always preheat to 200°C+.
2. Using Wrong Gas: Even trace oxygen in argon (e.g., 0.5% O₂) causes porosity. Test gas purity before welding.
3. Over-Annealing: Holding at 1,000°C for >2 hours coarsens grains, reducing strength. Stick to 1 hour max.

Conclusion: Mastering Molybdenum Sheet Welding

Welding molybdenum sheets demands precision, patience, and the right techniques. From laser welding with preheat to nickel buffers for dissimilar metals, each challenge has a solution—if you know where to look.

Final Checklist

✅ Before Welding:

• Clean surfaces with acetone.
• Preheat sheets to 200–300°C.
• Verify shielding gas purity (99.999% Ar).

✅ During Welding:

• Use pulse welding for thin sheets.
• Monitor temperature gradients with thermocouples.

✅ After Welding:

• Insulate to slow cooling.
• Anneal at 1,000°C for 1 hour.

By following these steps, you’ll turn molybdenum sheet welding from a headache into a competitive advantage—whether you’re building rocket engines or nuclear reactors.
