The Industrial Imperative for Molybdenum Sheet Welding

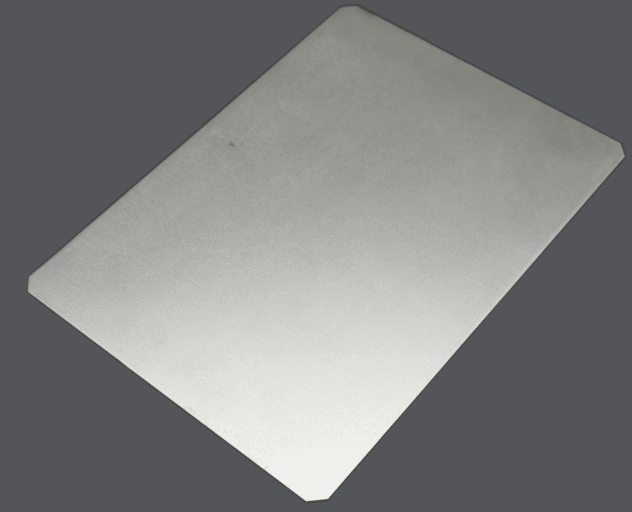

Molybdenum sheets are indispensable in aerospace, nuclear energy, and semiconductor industries due to their exceptional high-temperature strength, corrosion resistance, and low thermal expansion. However, welding molybdenum presents unique challenges: its brittle-to-ductile transition temperature (BDTT) ranges between 140–150°C, and its body-centered cubic (BCC) structure exacerbates crack susceptibility during welding.

This article explores two cutting-edge welding methods—non-contact laser welding and deep-penetration electron beam welding (EBW)—comparing their technical merits, process controls, and industrial applications.

Laser Welding for Molybdenum Sheets—Precision Meets Efficiency

Laser welding leverages focused photon energy to melt materials without physical contact, minimizing thermal distortion. For molybdenum sheets, Nd:YAG lasers and fiber lasers are commonly used due to their high power density and beam quality.

Key Advantages:

• Minimal Heat-Affected Zone (HAZ): Laser welding reduces HAZ width to 0.1–0.3 mm, preserving mechanical properties.
• High Processing Speed: A 2025 study by our team demonstrated a 2.5x increase in welding speed compared to TIG welding for 0.5 mm-thick Mo sheets[1].
• Automation-Friendly: Ideal for mass production of electronic components, such as vacuum device filaments.

Technical Challenges:

• Crack Sensitivity: Rapid cooling rates may induce microcracks.
• Surface Preparation: Oxide layers must be removed via alkaline boiling (e.g., KOH solution at 80°C for 30 minutes) to prevent porosity.

Case Study:
In a 2025 project, we welded 0.3 mm-thick Mo sheets using a 1 kW fiber laser. By applying a pre-weld alkaline treatment and post-weld annealing at 1,100°C for 1 hour, the joint tensile strength reached 280 MPa (85% of base material).

 Electron Beam Welding for Molybdenum—Deep Penetration with Atomic Precision

EBW operates in a vacuum (≤10⁻⁴ Pa), using a focused electron beam to generate localized melting. Its energy density (10⁶–10⁹ W/cm²) enables deep welds with minimal distortion.

Key Advantages:

• Deep Penetration: A single-pass weld can achieve depths up to 50 mm in Mo alloys.
• Narrow Weld Beam: The beam diameter can be controlled to <0.3 mm, ideal for micro-joining.
• Vacuum Environment: Eliminates oxidation, critical for nuclear and semiconductor applications.

Technical Challenges:

• Vacuum Requirements: Large workpieces may require oversized chambers, increasing costs.
• X-Ray Emission: High-energy beams generate X-rays, necessitating shielding.

Case Study:
A 2024 study by Morito et al. welded 16 mm-thick TZM alloy (Mo-0.5Ti-0.08Zr-0.02C) using EBW. The joint exhibited a BDTT reduction from 150°C to 100°C after optimizing vacuum levels (from 10⁻³ to 10⁻⁵ Pa).

 Comparative Analysis—Laser vs. EBW for Molybdenum Sheets

The table below summarizes key differences:

Decision Criteria:

• Choose laser welding for thin sheets (<1 mm) and cost-sensitive applications.
• Opt for EBW for thick sections (>5 mm) or ultra-high-purity requirements.

 Step-by-Step Guide to Optimal Molybdenum Sheet Welding

Laser Welding Protocol:

1. Surface Preparation:
   • Degrease with acetone.
   • Alkaline boil in 5% KOH at 80°C for 30 minutes.
2. Fixture Setup:
   • Use a vacuum chuck to minimize warpage.
3. Parameter Selection:
   • Power: 800–1,200 W (for 0.5 mm sheets).
   • Speed: 15–25 mm/s.
4. Shielding Gas:
   • Flow 15 L/min of 99.999% Ar.
5. Post-Weld Heat Treatment:
   • Anneal at 1,100°C for 1 hour in a vacuum furnace.

EBW Protocol:

1. Vacuum Preparation:
   • Pump chamber to ≤10⁻⁴ Pa.
2. Beam Focusing:
   • Adjust working distance to 100–150 mm.
3. Welding Parameters:
   • Accelerating voltage: 60–150 kV.
   • Beam current: 10–50 mA.
4. Deflection Control:
   • Use electromagnetic steering for complex geometries.
5. Inspection:
   • Perform X-ray radiography to detect subsurface defects.

Common Pitfalls and Mitigation Strategies

Mistake 1: Ignoring Surface Oxides

• Risk: Porosity and reduced joint strength.
• Solution: Implement alkaline boiling + ultrasonic cleaning.

Mistake 2: Excessive Heat Input

• Risk: Grain coarsening and embrittlement.
• Solution: Use pulsed laser modes or high-speed EBW scans.

Mistake 3: Skipping Post-Weld Annealing

• Risk: Residual stresses and delayed cracking.
• Solution: Anneal at 1,000–1,200°C for 1–2 hours.

Practical Checklist for Molybdenum Sheet Welding

Before starting your next project, ensure:

1. Surface Condition: Oxide-free and contaminant-free.
2. Parameter Validation: Conduct trial welds to optimize power/speed.
3. Vacuum Integrity (for EBW): Leak rate <10⁻⁸ Pa·m³/s.
4. Post-Weld Inspection: Use ultrasonic testing or dye penetrant.
5. Documentation: Record all process parameters for traceability.
