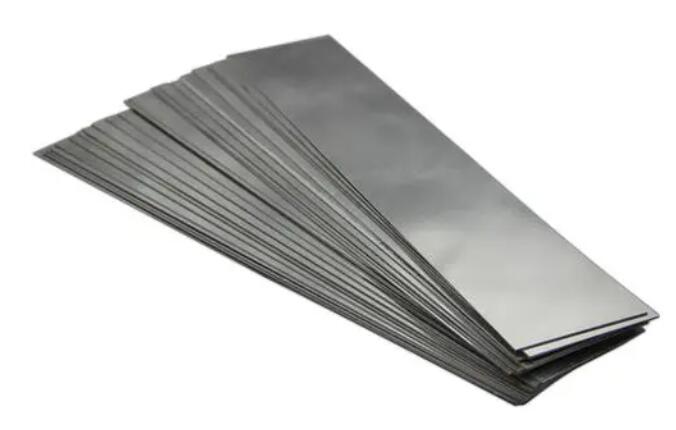

Molybdenum (Mo), a refractory metal with a density of 10.2 g/cm³ and a melting point of 2610°C, is widely used in high-temperature applications such as aerospace, nuclear energy, and semiconductor manufacturing. However, its high strength, low plasticity at room temperature, and susceptibility to cracking during bending pose significant challenges for processing. This article delves into the material-specific constraints, common defects, and optimization strategies for molybdenum plate bending.
2. Material Characteristics and Processing Constraints
2.1 Mechanical and Thermal Properties
- High Strength and Brittleness: Molybdenum exhibits a yield strength of ~500 MPa at room temperature, but its ductility drops sharply below 1000°C. This brittleness exacerbates edge cracking and layer separation during bending.
- Recrystallization Behavior: Dynamic recrystallization occurs above 1200°C, but excessive heating risks grain coarsening, reducing mechanical performance.
- Oxidation Sensitivity: Molybdenum oxidizes rapidly above 600°C, forming volatile MoO₃, which compromises surface integrity.
2.2 Common Processing Defects
- Head Cracking: Occurs due to tensile stress concentration at the plate edges during bending.
- Layer Separation: Caused by insufficient bonding between sintered layers in powder metallurgy-derived plates.
- Edge Cracking: Resulting from sharp tooling radii or excessive strain rates.
3. Key Processing Challenges
3.1 Tooling and Equipment Limitations
- High Force Requirements: Bending machines must withstand pressures exceeding 500 MPa for 1–2 mm-thick plates.
- Tooling Wear: Molybdenum’s hardness (HV 200–300) accelerates punch and die wear, necessitating tungsten carbide or ceramic-coated tools.
3.2 Process Parameter Sensitivity
- Temperature Control: Bending below 1000°C risks cracking, while exceeding 1400°C may induce grain growth.
- Strain Rate: Rapid deformation (≥0.1 s⁻¹) triggers adiabatic heating, increasing brittleness.
- Bending Radius: A minimum radius-to-thickness ratio (R/T) of ≥5 is recommended to mitigate cracking.
4. Parameter Optimization Strategies
4.1 Finite Element Analysis (FEA)-Driven Design
- Stress-Strain Modeling: ANSYS simulations predict optimal deformation zones, reducing trial-and-error iterations.
- Die Geometry Optimization: Parametric designs adjust punch radii and die angles dynamically based on material thickness.
4.2 Process Parameter Adjustments
- Two-Stage Bending: Preheating to 800°C followed by rapid bending at 1200°C minimizes cracking.
- Lubrication: Graphite-based lubricants reduce friction coefficients (μ ≤ 0.1), lowering tooling forces by 20–30%.
- Post-Bending Annealing: 1300°C vacuum annealing for 1 hour eliminates residual stresses, improving ductility by 15–20%.
4.3 Advanced Manufacturing Techniques
- Laser-Assisted Bending: Localized heating (1500°C) reduces forming forces by 40% while maintaining dimensional accuracy.
- Hot Gas Jet Bending: Nitrogen gas jets at 1200°C enable uniform heating, mitigating thermal gradients.
5. Case Study: High-Purity Molybdenum Plate Bending
A 1.5 mm-thick, 99.95%-pure molybdenum plate (density ≥19.2 g/cm³) was bent to a 90° angle with R/T=6.
- Initial Attempt: Room-temperature bending resulted in edge cracking.
- Optimized Process:
- Preheating to 1100°C in a vacuum furnace.
- Bending at a strain rate of 0.05 s⁻¹ using a tungsten carbide die.
- Post-bending annealing at 1350°C for 2 hours.
- Outcome: Zero defects, with a bend tolerance of ±0.1 mm and surface roughness (Ra) ≤ 0.8 μm.
Molybdenum plate bending demands a synergistic approach integrating material science, process engineering, and advanced simulation tools. By optimizing temperature regimes, strain rates, and tooling designs, manufacturers can achieve defect-free bending while preserving material performance. Future research should focus on real-time monitoring systems and AI-driven process control to further enhance yield rates and reduce costs.
Keywords: Molybdenum plate bending, refractory metals, finite element analysis, laser-assisted forming, high-temperature processing
