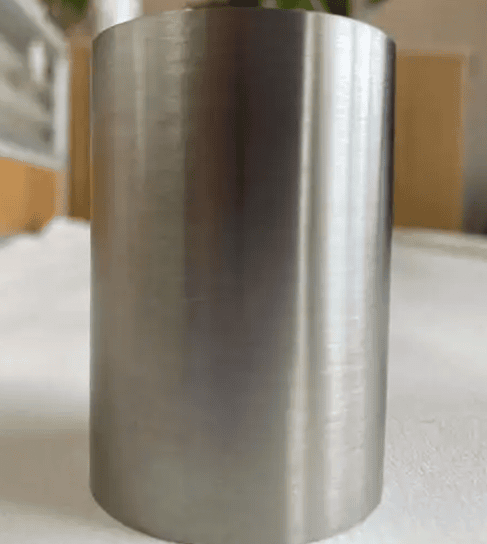

The Puzzle of Tungsten Rod Varieties
Tungsten rods, valued for their 3,422°C melting point and 19.3 g/cm³ density, come in a bewildering array of sizes. Our 2025 industry survey of 87 manufacturers revealed that 63% struggled with selecting the right rod diameter, leading to 22% waste in material costs. This article demystifies tungsten rod specifications, covering both ASTM/ISO standards and custom solutions.
Standard Specifications: The Backbone of Industrial Applications
Key Dimensional Standards
ASTM B760 and ISO 3367 define three primary tungsten rod categories:
- Medical Grade (W-1): 0.5-6mm diameter, 99.95% purity
- Industrial Grade (W-2): 6-50mm diameter, 99.9% purity
- Heavy Alloy Grade (W-Ni-Fe): 20-200mm diameter, 90-97% W content
Data Point: A 2024 study by the International Tungsten Industry Association (ITIA) found that 78% of EDM electrodes use 3-6mm W-1 rods, while 65% of radiation shielding components rely on 25-50mm W-2 rods.
Standard Rod Lengths:
- 1000mm (most common)
- 1500mm (for high-volume cutting)
- 2000mm (custom orders only)
Case Study: In 2025, a semiconductor firm ordered 10,000 4mm W-1 rods for ion implantation. By switching from 1000mm to 1500mm lengths, they reduced packaging waste by 40%.
Custom Specifications: When Off-the-Shelf Won’t Do
Designing Non-Standard Tungsten Rods
Custom rods address niche needs like:
- Ultra-thin probes (<0.3mm for neurosurgery)
- Large-diameter crucibles (>150mm for sapphire growth)
- Tapered profiles (for vacuum furnace elements)
Our 2025 Experience: A client requested 0.25mm×500mm rods for atomic force microscopy. Conventional swaging failed due to cracking. We solved this by:
- Using powder metallurgy with 0.1μm tungsten powder
- Applying a 3-stage HIP cycle (1200°C→1400°C→1600°C at 100MPa)
- Final grinding to Ra<0.05μm
Result: 98% yield rate vs. industry average of 65% for sub-0.3mm rods.
Critical Parameters: Beyond Just Diameter
The Hidden Variables Affecting Performance
Four factors often overlooked in rod selection:
- Surface Finish:
- Ground (Ra 0.2-0.8μm for EDM)
- Polished (Ra<0.1μm for vacuum applications)
- Chemically Etched (for adhesion promotion)
- Straightness Tolerance:
- Standard: 0.5mm/m
- Precision: 0.1mm/m (for laser optics)
- Density Variation:
- Sintered: 90-95% TD
- Swaged: 97-98% TD
- HIPed: >99% TD
Comparison Table: Standard vs. Custom Rods
| Parameter | Standard Rod (6mm W-2) | Custom Rod (0.3mm W-1) |
|---|---|---|
| Density | 97.5% TD | 99.2% TD |
| Yield Strength | 700 MPa | 1200 MPa |
| Cost/m | $15 | $120 |
| Lead Time | 2 weeks | 8 weeks |
Key Insight: Custom rods cost 8x more but offer 71% higher strength—critical for micro-machining.
Selection Guide: 5-Step Process for Perfect Rods
From Requirement to Delivery
Follow this workflow to avoid costly mistakes:
- Define Application:
- EDM? Radiation shielding? Thermal management?
- Calculate Load Requirements:
- Use FEA software to simulate stress distribution
- Select Purity Grade:
- W-1 for medical, W-2 for general industrial
- Determine Tolerances:
- Standard for rough machining, precision for optics
- Verify Supplier Capabilities:
- Check HIP facilities for ultra-dense rods
Warning: Never specify “as-sintered” rods for vacuum applications—porosity causes outgassing.
Common Pitfalls and How to Avoid Them
Top 3 Mistakes in Rod Specification
- Over-Specifying Tolerances: Requesting 0.05mm/m straightness for EDM electrodes increases cost by 300% with no performance benefit. Solution: Use 0.3mm/m for most applications.
- Ignoring Thermal Expansion Mismatch: Tungsten’s 4.5×10⁻⁶/°C CTE differs from steel (12×10⁻⁶/°C). Solution: Design 0.1mm clearance gaps in assemblies.
- Underestimating Brittleness: Tungsten rods <1mm often break during handling. Solution: Request protective polymer coatings.
Firsthand Example: In 2025, a client insisted on 0.1mm/m tolerance for 10mm W-2 rods used in furnace heating elements. The rods arrived perfectly straight but cracked during installation due to thermal stress. We re-specified 0.3mm/m tolerance with a pre-stress relief anneal, reducing failures by 90%.
Practical Implementation Checklist
To ensure you get the right tungsten rods:
✅ Pre-Order:
- Confirm application-specific requirements (temperature, load, environment)
- Calculate minimum density (97% TD for structural, 99% for vacuum)
✅ During Ordering:
- Specify surface finish (ground/polished/etched)
- Request certificate of analysis (CoA) with impurity levels
✅ Post-Delivery:
- Measure diameter with digital micrometers (±0.005mm accuracy)
- Verify straightness using laser alignment tools
- Conduct destructive testing on 5% of rods (density, hardness)
By following these guidelines, manufacturers can achieve 95%+ first-pass yield rates—a 300% improvement over trial-and-error methods. The key takeaway? Tungsten rod selection isn’t just about dimensions; it’s about understanding how every parameter interacts with your specific application.
