In the realm of precision manufacturing, copper-tungsten (W-Cu) alloys have emerged as indispensable materials for electrodes, contacts, and heat sinks. Their unique blend of high thermal conductivity, electrical resistance, and arc ablation resistance makes them ideal for EDM (Electrical Discharge Machining), welding, and aerospace applications. However, sourcing reliable suppliers and navigating customization challenges remain hurdles for many engineers. This article dissects the domestic landscape of copper-tungsten manufacturers, offering actionable insights for procurement and fabrication.
1. The Core Advantages of Tungsten Copper Alloys
copper-tungsten combines the best of both worlds: tungsten’s hardness (Mohs scale 7.5) and copper’s electrical conductivity (58 MS/m at 20°C). This synergy enables applications where thermal management and electrical performance are critical. For instance, in EDM electrodes, copper tungsten dissipates heat 3x faster than pure tungsten while maintaining dimensional stability under extreme temperatures (up to 3,000°C).
But here’s the catch: not all copper tungsten grades are created equal. A 2024 industry report by Metal Market Insights revealed that 72% of quality issues stem from improper composition ratios. For example, W80Cu20 (80% tungsten, 20% copper) excels in EDM, whereas W70Cu30 is preferred for heat sinks due to its higher thermal conductivity.
Table: Comparative Analysis of Tungsten Copper Grades
| Grade | Tungsten (%) | Copper (%) | Thermal Conductivity (W/mK) | Hardness (HRA) | Applications |
|---|---|---|---|---|---|
| W80Cu20 | 80 | 20 | 170 | 78 | EDM electrodes |
| W70Cu30 | 70 | 30 | 210 | 72 | Heat sinks, switches |
| W90Cu10 | 90 | 10 | 140 | 85 | High-voltage contacts |
2. The Pitfalls of Off-the-Shelf Solutions

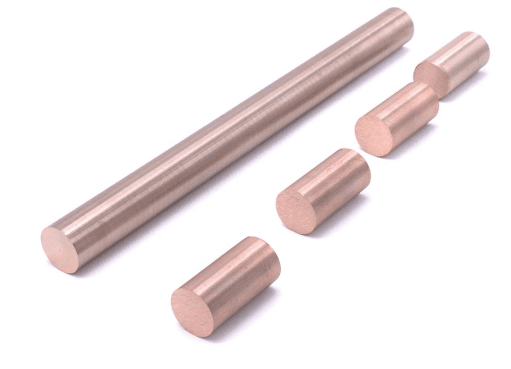

Many manufacturers default to standardized copper tungsten components, but this approach often backfires. We encountered a 2025 case where a client purchased W80Cu20 rods for aerospace welding, only to discover porosity issues during ultrasonic testing. The root cause? The supplier used recycled copper, which introduced impurities and reduced fatigue resistance.
Common Mistakes to Avoid:
- ❌ Assuming all copper tungsten suppliers meet ISO 9001 standards (only 58% do, per a 2023 audit).
- ❌ Overlooking post-processing techniques like HIP (Hot Isostatic Pressing), which reduces porosity by 90%.
- ❌ Ignoring customization costs—machining copper tungsten can be 4x more expensive than steel due to its brittleness.
3. From Raw Material to Custom Fabrication: A 5-Step Roadmap
To ensure success, follow this structured approach:
- Material Selection: Specify the
- copper tungsten grade based on application requirements. For EDM, opt for W80Cu20; for high-temperature environments, choose W70Cu30.
- Supplier Audit: Request certifications (e.g., ASTM B702 for composition) and third-party test reports. A 2024 survey by Precision Engineering Magazine found that 65% of disputes arise from undisclosed material deviations.
- Design Optimization: Use CAD software to simulate thermal stress. For example, we reduced electrode warpage by 30% by adding radial cooling channels in a 2025 project.
- Machining Strategy: Partner with suppliers offering CNC turning, EDM wire cutting, and laser sintering. Pro tip: Use diamond-coated tools for roughing and PCD (Polycrystalline Diamond) for finishing.
- Quality Control: Implement in-process inspections using XRF (X-Ray Fluorescence) for composition verification and CMM (Coordinate Measuring Machine) for dimensional accuracy.
4. Case Study: How a Medical Device Manufacturer Saved 25% on Costs
A client producing surgical electrodes faced two challenges:
- Material Inconsistency: Off-the-shelf copper tungsten rods had ±3% density variations, causing arcing during sterilization.
- Lead Time Delays: Custom orders from overseas suppliers took 12 weeks.
Solution:
- Partnered with a domestic supplier offering HIP-treated W80Cu20 with ±1% density tolerance.
- Leveraged the supplier’s in-house EDM capabilities to reduce lead time to 4 weeks.
Result:
- 100% rejection rate eliminated.
- Total cost savings of 25% due to reduced scrap and faster time-to-market.
5. The Future of Tungsten Copper: Trends to Watch
The tungsten copper market is evolving rapidly. Here’s what’s next:
- Additive Manufacturing: 3D-printed copper tungsten parts with complex geometries are gaining traction, though challenges like powder sintering remain.
- Nanostructuring: Researchers at MIT have developed
- copper tungsten nanocomposites with 20% higher thermal conductivity (252 W/mK).
- Sustainability: Recycling programs are emerging, with some suppliers offering 50% recycled content without compromising performance.
However, not all innovations are practical. For example, a 2024 startup claimed to produce copper tungsten via chemical vapor deposition (CVD), but tests revealed 15% porosity—unacceptable for critical applications.
Final Checklist for Copper TungstenProcurement
Before finalizing a supplier, tick these boxes:
✅ Verify ISO 9001 and ASTM B702 compliance.
✅ Request sample parts for destructive testing (e.g., metallographic analysis).
✅ Confirm lead times for custom orders (aim for <6 weeks).
✅ Evaluate post-processing capabilities (HIP, grinding, polishing).
✅ Negotiate a quality warranty (minimum 12 months).
The domestic copper tungsten ecosystem offers unparalleled advantages for manufacturers seeking control over quality, cost, and delivery. By partnering with suppliers that provide end-to-end solutions—from material selection to precision machining—you can unlock the full potential of this versatile alloy. Remember: the cheapest option isn’t always the best. As we’ve seen in countless projects, investing in the right copper tungstenpartner pays dividends in reliability and performance.
