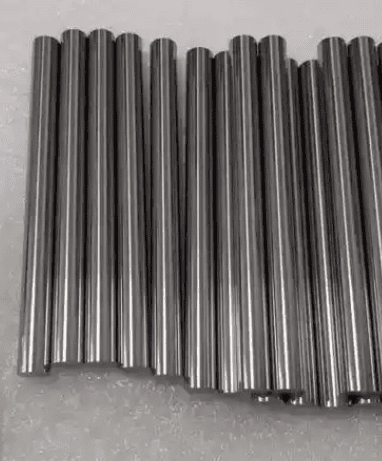

Tungsten rods, renowned for their exceptional melting point (3,422°C) and thermal conductivity, are indispensable in high-temperature applications such as vacuum furnaces, semiconductor manufacturing, and aerospace thermal systems. However, optimizing their thermal performance requires addressing challenges like oxidation, thermal expansion mismatches, and power density limitations. This article explores advanced strategies to enhance tungsten rod heating efficiency, durability, and precision in extreme environments.
Tungsten’s unique properties—high density (19.25 g/cm³), low vapor pressure, and excellent creep resistance—make it ideal for high-temperature heating elements. Yet, its brittleness at room temperature and susceptibility to oxidation above 600°C necessitate innovative solutions for sustained thermal performance.
2. Key Challenges in Tungsten Rod Heating
2.1 Oxidation and Degradation
- Tungsten forms volatile WO₃ above 600°C, leading to material loss and embrittlement.
- In vacuum environments, sublimation (direct transition from solid to vapor) can occur at >2,000°C, shortening component lifespan.
2.2 Thermal Stress and Fracture
- Tungsten’s low ductility (<10% elongation) makes it prone to cracking under rapid heating/cooling cycles.
- Thermal expansion coefficient (4.5 × 10⁻⁶/°C) mismatches with ceramic insulators, causing joint failures.
2.3 Power Density Limitations
- Surface loading must be limited to <15 W/cm² to avoid localized overheating and recrystallization-induced embrittlement.
3. Strategies for Thermal Performance Optimization
3.1 Protective Coatings
- Refractory Metal Coatings: Rhenium (Re) or osmium (Os) coatings (1–5 μm thick) reduce oxidation rates by 90% at 1,800°C.
- Ceramic Barrier Layers: Yttria-stabilized zirconia (YSZ) coatings applied via plasma spraying prevent oxygen diffusion while maintaining thermal conductivity.
3.2 Alloying and Doping
- Thoria-Doped Tungsten (W-ThO₂): 1–2% ThO₂ additions enhance recrystallization resistance, extending lifespan by 30% in high-power applications.
- Rhenium Alloying (W-Re): 3–26% Re alloys improve ductility, enabling bending radii as tight as 3× the rod diameter without cracking.
3.3 Advanced Heating Element Designs
- Twisted Filament Geometry: Twisted rods increase surface area by 40%, improving heat transfer efficiency while maintaining mechanical strength.
- Segmented Heating Zones: Laser-cut slots divide rods into independent heating sections, enabling precise temperature control (±1°C) in semiconductor epitaxy reactors.
3.4 Thermal Management Systems
- Active Cooling Jackets: Water-cooled copper sheaths reduce radial temperature gradients by 60%, preventing thermal runaway in nuclear reactor heating elements.
- Phase-Change Material (PCM) Inserts: Lithium fluoride (LiF) PCMs absorb latent heat during transient overloads, stabilizing temperatures within 50°C of setpoints.
4. Case Studies in High-Temperature Applications
4.1 Semiconductor CVD Reactors
- A 12-inch W rod array (Ø3 mm, 1,200 mm length) with YSZ coatings achieved 99.9% purity in silicon epitaxy, reducing defect density by 80% compared to uncoated rods.
4.2 Vacuum Furnace Elements
- Thoria-doped W rods (Ø6 mm) withstood 2,000°C continuous operation for 1,000 hours in brazing furnaces, maintaining <0.5% dimensional change.
4.3 Hypersonic Vehicle Nose Caps
- W-Re alloy rods (20% Re) embedded in carbon-carbon composites survived 2,500°C reentry heating, outperforming graphite by 40% in ablation resistance.
5. Emerging Technologies
5.1 Additive Manufacturing of Tungsten Heating Elements
- Laser powder bed fusion (LPBF) enables the production of complex geometries (e.g., honeycomb cores) with 98% density, reducing power consumption by 15% versus machined rods.
5.2 AI-Driven Temperature Control
- Neural networks predict optimal power input based on real-time thermal imaging, reducing overshoot by 70% in MOCVD reactors.
5.3 Self-Healing Coatings
- Microencapsulated tungsten powder in ceramic matrices releases fresh metal to repair cracks, extending rod lifespan by 2x in nuclear applications.
Optimizing the thermal performance of tungsten rods in high-temperature applications requires a multi-faceted approach:
- Material innovation: Protective coatings and alloying to resist degradation.
- Design optimization: Geometric modifications to enhance heat transfer.
- System integration: Active cooling and AI-driven control for precision.
As industries like fusion energy, 6G communications, and deep-space exploration demand higher temperatures, these advancements will ensure tungsten rods remain the gold standard for thermal management.
