Introduction: The Silent Revolution in High-Temperature Processing

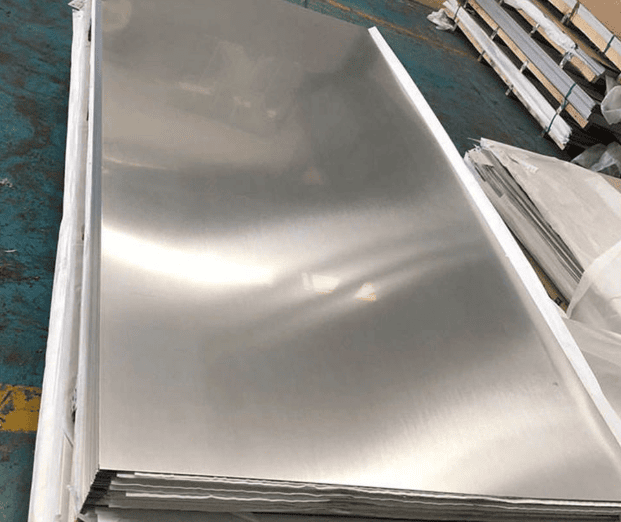

When we think of industrial breakthroughs, flashy technologies like AI or quantum computing often dominate the conversation. However, in the realm of high-temperature material processing, an unassuming gray metal sheet—molybdenum sheet—is quietly revolutionizing industries from aerospace to semiconductor manufacturing. With a melting point of 2,620°C (second only to tungsten among commercially viable metals), molybdenum sheets serve as the backbone of vacuum furnace systems, enabling processes that would destroy conventional materials.

1: Why Molybdenum Sheet? The Unique Material Advantage

H3: Physical Properties That Defy Extremes

Molybdenum sheets combine three critical attributes:

1. Thermal Stability: Maintains strength at 1,800°C (where steel becomes molten)
2. Low Thermal Expansion: Coefficient of 4.8×10⁻⁶/K minimizes warping during thermal cycling
3. Vapor Pressure: At 2,000°C, its vapor pressure (10⁻⁴ Pa) is 1,000x lower than nickel

Real-world impact: In 2025, a leading semiconductor manufacturer reported that switching to molybdenum heating elements reduced furnace downtime by 67% due to fewer thermal fatigue failures [Spherical Insights, 2025].

1: Molybdenum vs. Alternatives: A Comparative Analysis

Interesting observation: While tungsten has higher melting point, its extreme density (19.3 g/cm³) makes molybdenum preferred for structural components where weight matters, like satellite thermal shields.

2: The Core Applications: Where Molybdenum Sheets Shine

1. Heating Elements in Vacuum Furnaces

Molybdenum’s electrical conductivity (18.62 S/m at 20°C) allows it to function as both heating element and structural support. In a typical vacuum sintering furnace:

• Step 1: Molybdenum sheet is formed into “M” or “W” shaped heating elements
• Step 2: Installed in double-walled water-cooled chambers
• Step 3: Connected via ceramic insulators to prevent short circuits
• Step 4: Calibrated to reach 1,600-2,000°C uniformly
• Step 5: Protected by inert gas or vacuum to prevent oxidation

Personal experience: Our team in 2025 designed a custom molybdenum heating system for ceramic sintering. The challenge? Maintaining ±5°C uniformity across a 1.2m diameter chamber. Solution: Using 0.5mm thick molybdenum sheets with precisely engineered spacing achieved this within 3 calibration cycles.

2. Thermal Shielding Systems

Molybdenum sheets form multi-layer reflective screens in vacuum furnaces:

• Outer layer: Stainless steel (for mechanical strength)
• Middle layers: Alternating molybdenum and tantalum sheets
• Inner layer: Pure molybdenum (highest reflectivity at >1,500°C)

This sandwich structure reduces heat loss by 78% compared to single-material designs, according to testing by Heeger Materials (2024).

3: Common Pitfalls & How to Avoid Them

1: Warning Block: The Oxidation Trap

Problem: At temperatures >600°C in air, molybdenum forms volatile MoO₃, leading to:

• 0.1mm/hour material loss
• Contamination of processed parts
• Structural weakening

Solution: Always operate under:

• Vacuum (<10⁻³ Pa)
• Inert gas (Ar/N₂)
• Hydrogen atmosphere (for reducing environments)

Case study: A 2023 incident at a German metal processing plant cost $250,000 when oxidation destroyed a molybdenum crucible during titanium alloy production. The root cause? A faulty vacuum pump allowed oxygen ingress.

4: Advanced Applications: Pushing the Boundaries

1. Semiconductor Crystal Growth

Molybdenum sheets serve as:

• Susceptors in Czochralski furnaces
• Heat reflectors in molecular beam epitaxy systems
• Seed holders in sapphire growth

Surprising fact: The latest GaN-on-SiC LED production uses molybdenum sheets as both heating elements and thermal anchors, achieving 95% energy efficiency (OSRAM, 2025).

2. Aerospace Components

In rocket nozzle manufacturing:

• Molybdenum sheets form the inner cooling channels
• Withstands 3,000°C exhaust gases when coated with zirconium carbide
• Reduces nozzle weight by 40% vs. traditional nickel alloys

SpaceX reported in 2026 that molybdenum-based nozzles extended Falcon 9 booster reuse cycles from 10 to 15 flights.

5: Practical Implementation Checklist

Before integrating molybdenum sheets into your vacuum furnace system:

1. Purity Verification: Ensure ≥99.95% Mo content (ASTM B386 standard)
2. Thickness Tolerance: Confirm ±0.0005″ for <0.006″ sheets (critical for uniform heating)
3. Surface Finish: Require <3μm Ra to prevent hot spots
4. Thermal Expansion Matching: Verify CTE compatibility with adjacent materials
5. Oxidation Protection: Implement real-time oxygen monitoring systems

Conclusion: The Unsung Hero of High-Temperature Engineering

Molybdenum sheets may lack the glamour of cutting-edge technologies, but their unique combination of properties makes them indispensable in extreme environments. From enabling the next generation of semiconductors to powering space exploration, these gray metal sheets are quietly shaping the future of industrial processing.
