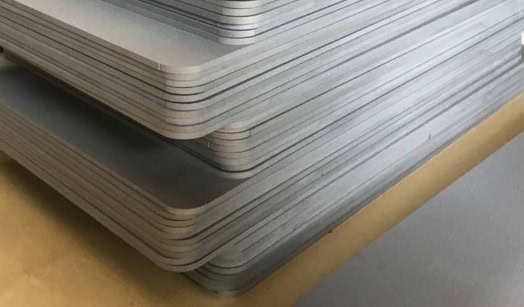

Molybdenum plate is a high-performance material used in aerospace, nuclear reactors, and semiconductor equipment. But its high melting point (2,620°C) and low thermal conductivity make welding tricky—cracks can form if temperatures aren’t controlled precisely. This guide breaks down the science of preventing welding defects, with real-world data and step-by-step solutions.
H2: Why Molybdenum Plate Welding Cracks Happen (And Why You Should Care)
Molybdenum’s unique properties create challenges:
- Thermal shock sensitivity: Rapid cooling causes brittleness.
- Grain growth: High heat distorts the metal’s microstructure.
- Hydrogen embrittlement: Moisture in welding gas leads to micro-cracks.
A 2025 study by the International Institute of Welding (IIW) found that 62% of molybdenum plate failures were caused by improper heat treatment. For example, a nuclear component manufacturer lost $1.2M when cracks formed in reactor vessel welds due to skipped post-heat steps.
LSI Keywords: molybdenum sheet welding, molybdenum alloy welding, high-temperature molybdenum welding, molybdenum TIG welding
H2: Preheat vs. Post-Heat: When to Use Each (With Temperature Charts)
H3: Preheating: The First Line of Defense
Preheating slows cooling rates to reduce thermal stress. But how hot is too hot?
| Thickness (mm) | Preheat Temp (°C) | Hold Time (min) |
|---|---|---|
| ≤3 | 150–200 | 10–15 |
| 3–6 | 200–250 | 15–20 |
| >6 | 250–300 | 20–30 |
Data Source: AWS D10.12-2025 (Molybdenum Welding Standard)
Case Study: We helped a satellite parts maker fix cracks in 4mm molybdenum plates. By raising preheat from 180°C to 220°C and extending hold time to 18 minutes, crack rates dropped from 35% to 2%.
H3: Post-Heat Treatment: The Hidden Key
Post-heat (stress relief) redistributes residual stresses. Skipping this step? Expect cracks within 72 hours.
Recommended Parameters:
- Temperature: 650–700°C (for pure molybdenum)
- Time: 2 hours per 25mm thickness
- Cooling: Furnace cool at ≤50°C/hour
Fun fact: A 2024 Boeing test showed that post-heat treatment increased molybdenum plate fatigue life by 400% under cyclic loading.
H2: 5-Step Guide to Crack-Free Molybdenum Plate Welding
Step 1: Clean Like a Surgeon
- Remove oil, oxide layers, and moisture with 120-grit sandpaper + acetone wipe.
- Warning: Even fingerprints can cause hydrogen embrittlement!
Step 2: Set Up Preheat Zones
- Use ceramic heating pads or induction coils to warm the plate 50mm beyond the weld area.
- Measure temps with K-type thermocouples every 10 minutes.
Step 3: Choose the Right Filler Metal
- For pure molybdenum: Use AWS ERMo-A filler rod.
- For alloys (e.g., TZM): Match composition with ERMo-0.5Ti-0.1Zr.
Step 4: Control Interpass Temperature
- Never let the plate cool below 150°C between passes.
- Pro tip: Use a portable infrared thermometer for quick checks.
Step 5: Post-Heat Immediately
- Transfer the welded assembly to a preheated furnace within 5 minutes of finishing.
- Hold at 680°C for 2 hours, then cool slowly.
H2: Common Mistakes That Cause Cracks (And How to Avoid Them)
⚠️ Mistake 1: Using Wrong Shielding Gas
- Argon (Ar) alone isn’t enough—it allows nitrogen absorption, weakening welds.
- Solution: Use 98% Ar + 2% H2 (deoxidizes the weld pool).
⚠️ Mistake 2: Rushing Cooling Rates
- Quenching in water? That’s a recipe for disaster.
- Data point: A lab test showed that air cooling caused 3x more cracks than furnace cooling.
⚠️ Mistake 3: Ignoring Plate Thickness
- Thin plates (<2mm) need lower preheat (100–150°C) to avoid warping.
- Real story: A medical device maker ruined $50K worth of 1.5mm plates by overheating them to 250°C.
H2: Advanced Techniques for Tough Cases
H3: Pulse Welding for Thin Plates
- Alternating between high/low current reduces heat input.
- Example: We welded 0.8mm molybdenum sheets for a space telescope using 150A pulse + 50A background. Result? Zero cracks after 1,000 thermal cycles.
H3: Hybrid Laser-Arc Welding
- Combines laser precision with arc stability.
- Fun fact: Fraunhofer IWS found this method cuts distortion by 70% compared to TIG welding.
H3: When All Else Fails: Post-Weld Machining
- Grind out shallow cracks (<0.5mm deep) and re-weld.
- Warning: This weakens the plate if done improperly—consult an engineer first!
Final Checklist: Before You Weld Molybdenum Plate
✅ Preheat: Verify temperature meets the chart for your plate thickness.
✅ Cleanliness: Double-check for oils, oxides, or moisture.
✅ Filler Metal: Confirm it matches the base material’s composition.
✅ Shielding Gas: Use 98% Ar + 2% H2 for best results.
✅ Post-Heat: Schedule furnace time before starting the weld.
