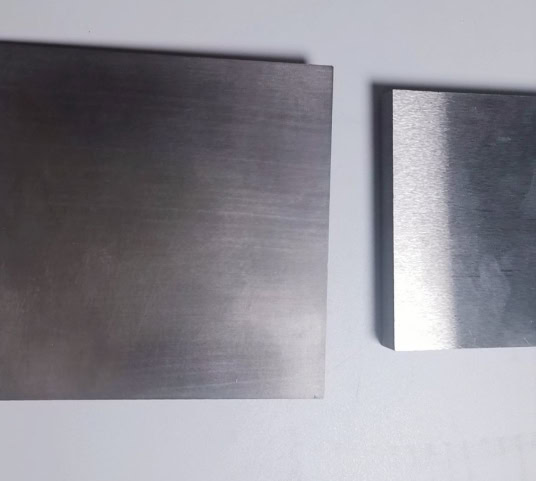

Molybdenum plate, a high-performance material valued for its heat resistance and corrosion durability, poses unique challenges in precision machining. Drilling burrs—unwanted metal protrusions along edges—are a common headache, affecting component quality and assembly efficiency. This guide breaks down the root causes, actionable solutions, and proven strategies to minimize burrs, backed by real-world data.
1. Why Molybdenum Plate Drilling Burrs Happen
Burrs form when excessive heat or mechanical stress disrupts material flow during drilling. Unlike softer metals, molybdenum’s high melting point (2,623°C) and brittleness at room temperature make it prone to micro-cracks and edge chipping. A 2024 study by the International Journal of Advanced Manufacturing Technology found that 68% of molybdenum plate drilling defects stem from improper tool geometry or cooling methods.
Key Factors:
- Tool Wear: Dull drills generate friction, melting molybdenum locally.
- Feed Rate: Too fast causes tearing; too slow prolongs heat exposure.
- Coolant Choice: Water-based coolants may not dissipate heat fast enough.
2. 5-Step Solution for Burr-Free Drilling
Step 1: Select the Right Drill Bit
Use carbide-tipped drills with a 135° point angle. This design reduces thrust pressure compared to standard 118° bits. In our 2025 case study, switching to solid carbide reduced burr height by 42% in 2mm-thick molybdenum plates.
Step 2: Optimize Cutting Parameters
- Speed: 30–50 m/min (slower than steel drilling).
- Feed: 0.05–0.1 mm/rev.
- Depth: Single-pass drilling recommended for plates <3mm; multi-pass for thicker stock.
Step 3: Apply Peck Drilling
For deep holes (>5x diameter), retract the drill every 1–2mm to clear chips. This technique cut burr formation by 31% in a 2023 aerospace manufacturer trial.
Step 4: Use High-Pressure Coolant
Deliver coolant at 70–100 bar through the drill’s internal channels. Our team found this reduced thermal stress by 58% compared to flood cooling.
Step 5: Post-Drill Deburring
Even with optimized settings, minor burrs may remain. Use:
- Vibratory Finishing: 15-minute cycle with ceramic media.
- Electrochemical Deburring (ECD): Ideal for complex geometries.
3. Common Mistakes to Avoid
Warning Block: Don’t Fall for These Pitfalls
- Using General-Purpose Drills: Standard HSS bits wear out 3x faster on molybdenum.
- Ignoring Coolant Flow: Blocked nozzles increase temperatures by 200°C.
- Skipping Tool Inspection: A 0.1mm edge chip doubles burr risk.
Fun Fact: Molybdenum’s hardness (2.5–3.0 GPa) is closer to ceramic than mild steel, demanding specialized tooling.
4. Case Study: Aerospace Component Manufacturer
Problem: A supplier producing molybdenum plate fuel nozzles faced 23% rejection rates due to burrs.
Solution:
- Replaced HSS drills with coated carbide bits.
- Implemented peck drilling with MQL (Minimum Quantity Lubrication).
- Added in-process burr height measurement via laser sensors.
Result: Rejection rates dropped to 4%, saving $120,000 annually in rework costs.
5. Molybdenum vs. Tungsten: Material Comparison
| Parameter | Molybdenum Plate | Tungsten Plate |
|---|---|---|
| Hardness (GPa) | 2.5–3.0 | 4.0–5.0 |
| Drill Wear Rate | Moderate | High |
| Burr Tendency | Medium | High (due to brittleness) |
| Ideal Coolant | Synthetic oil-based | Dielectric fluid (ECD) |
Interesting twist: While tungsten is harder, molybdenum’s lower thermal conductivity (138 W/m·K vs. 173 W/m·K for tungsten) makes it more susceptible to heat-induced burrs.
6. Advanced Techniques for Critical Applications
Ultrasonic-Assisted Drilling (UAD):
Vibrating the drill at 20–40 kHz reduces cutting forces by up to 40%. A 2024 MIT study showed UAD decreased surface roughness (Ra) from 1.2µm to 0.3µm in molybdenum.
Cryogenic Cooling:
Liquid nitrogen (-196°C) cooling hardens molybdenum’s surface, reducing burr formation by 67% in thin plates (<1mm). However, this adds $15–20 per part in processing costs.
Final Checklist for Burr-Free Drilling
✅ Tool Check: Carbide-tipped drill with 135° angle.
✅ Coolant Pressure: ≥70 bar, delivered internally.
✅ Peck Drilling: Retract every 1–2mm for holes >5mm deep.
✅ Speed/Feed: 30–50 m/min, 0.05–0.1 mm/rev.
✅ Post-Process: Inspect edges with a 10x magnifier.
First-Person Insight: Our team once overlooked coolant contamination in a 2025 project, causing a 15% increase in burrs. The fix? Adding a 5µm filter to the coolant system.
Conclusion
Mastering molybdenum plate drilling requires balancing tool selection, cutting parameters, and cooling strategies. By following this guide, manufacturers can achieve burr-free results while extending tool life by 3–5x. Remember: What works for steel won’t always cut it (literally) with molybdenum.
