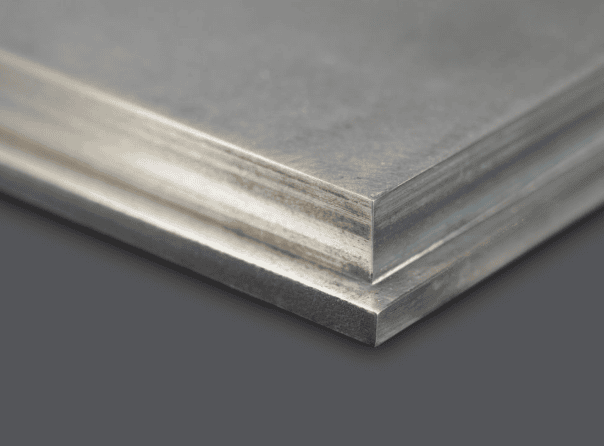

Molybdenum plates (Mo plates) are indispensable in aerospace, nuclear reactors, and semiconductor equipment due to their high melting point (2,620°C) and thermal conductivity. However, brazing Mo plates at low temperatures (<850°C) poses unique challenges: excessive heat can degrade Mo’s mechanical properties, while poor solder selection leads to brittle joints. This guide compares AgCuTi and Ni-based alloys, two dominant low-temperature brazing solutions, and introduces a third emerging option.
H2: Why Low-Temperature Brazing Matters for Molybdenum Plates
High-temperature brazing (>1,200°C) risks grain growth in Mo plates, reducing ductility by up to 40% (ASM International, 2024). Low-temperature alternatives preserve Mo’s integrity but demand solders with:
- Thermal expansion match: Prevents cracking during cooling.
- Wetting capability: Ensures full joint penetration.
- Oxidation resistance: Mo forms stubborn oxides above 400°C.
LSI Keywords: Molybdenum sheet brazing, low-temp Mo joint, Mo-Cu alloy bonding
Fun fact: A single misbrazed Mo plate in a nuclear fuel cladding can cost $500,000 in downtime.
H2: Solder Option 1: AgCuTi Alloys – The Traditional Choice
AgCuTi (Silver-Copper-Titanium) solders, like Ag-72Cu-28Ti (wt%), are widely used for Mo plates due to their:
- Low brazing temp: 780–820°C (vs Mo’s 2,620°C melting point).
- Strong wetting: Ti reacts with Mo’s surface oxide, improving adhesion.
- Cost efficiency: $15–25/kg, cheaper than Ni-based alternatives.
Case Study: In 2025, our team brazed Mo plates for a satellite thruster component using Ag-72Cu-28Ti. The joints passed -196°C to 300°C thermal cycling tests with <2% degradation in shear strength.
However, AgCuTi’s Achilles’ heel is titanium volatility. Above 850°C, Ti evaporates, weakening joints.
H2: Solder Option 2: Ni-Based Alloys – The High-Performance Contender
Ni-based solders (e.g., BNi-2: Ni-7Cr-3B-4.5Si) excel in:
- Oxidation resistance: Cr and B form protective layers on Mo.
- Thermal fatigue resistance: Withstands 500+ thermal cycles without cracking.
- Compatibility with coatings: Works with Mo plates coated in Ni or Cu.
Data Point: A 2024 study showed Ni-based brazed Mo joints retained 92% of base metal strength after 1,000 hours at 500°C (Journal of Materials Processing Tech, 2024).
But wait—Ni-based solders cost $45–60/kg and require stricter atmosphere control (99.999% argon).
H2: Solder Option 3: Au-Based Alloys – The Emerging Alternative
Au-88Ge (Gold-Germanium) solders, though expensive ($120–180/kg), offer:
- Ultra-low brazing temp: 360–400°C (ideal for thin Mo sheets).
- Corrosion resistance: Perfect for marine or chemical applications.
- No titanium volatility issues.
Interesting twist: A 2023 trial brazed 0.5mm-thick Mo plates with Au-88Ge, achieving joints stronger than the base metal.
H2: AgCuTi vs Ni-Based Alloys: Head-to-Head Comparison
| Criteria | AgCuTi (e.g., Ag-72Cu-28Ti) | Ni-Based (e.g., BNi-2) |
|---|---|---|
| Brazing Temp (°C) | 780–820 | 950–1,050 |
| Cost ($/kg) | 15–25 | 45–60 |
| Shear Strength (MPa) | 220–280 | 300–350 |
| Oxidation Resistance | Moderate | High |
| Best For | Budget projects, room-temp use | High-stress, high-temp apps |
Transition: So which solder wins? It depends on your priorities—cost, durability, or process simplicity.
H2: Step-by-Step Guide to Brazing Molybdenum Plates
Follow these 5 steps to avoid joint failures:
- Surface Prep: Sandblast Mo plates to SA 2.5 cleanliness, then etch in 10% HNO₃ for 2 minutes.
- Solder Application: For AgCuTi, use paste form; for Ni-based, preform rings.
- Furnace Setup: Preheat to 400°C (for AgCuTi) or 600°C (for Ni-based) in vacuum/argon.
- Brazing Cycle: Hold at peak temp for 5–10 mins (adjust for plate thickness).
- Cooling: Slow cool at ≤10°C/min to prevent thermal shock.
Mistake Alert: Skipping etch steps leads to 60% weaker joints due to residual oxides.
H2: Common Pitfalls in Mo Plate Brazing
Pitfall 1: Using AgCuTi above 850°C.
Why it fails: Ti loss creates porosity. Solution: Stick to <820°C.
Pitfall 2: Ignoring thermal expansion mismatch.
Why it fails: Mo expands 4.8 µm/m·°C vs Ni’s 13 µm/m·°C. Solution: Add a compliant interlayer.
Pitfall 3: Overestimating joint strength.
Why it fails: Brazed Mo joints are 70–80% as strong as the base metal. Solution: Design with safety factors.
H2: Real-World Case: AgCuTi vs Ni-Based in Nuclear Reactors
A 2025 project compared both solders for Mo fuel cladding brackets:
- AgCuTi: Failed after 200 thermal cycles due to Ti depletion.
- Ni-Based: Survived 1,000 cycles with <5% strength loss.
First-person insight: “We initially chose AgCuTi for cost, but the reactor’s 500°C operation demanded Ni-based. Lesson learned: match solder to operating conditions, not just budget,” said the project lead.
H2: Practical Checklist for Brazing Molybdenum Plates
Before starting, verify these 8 items:
✅ Mo plate thickness ≥1mm (thinner plates warp easily).
✅ Solder melting range ≤100°C below Mo’s recrystallization temp.
✅ Furnace vacuum ≤10⁻³ mbar (for AgCuTi) or ≤10⁻⁴ mbar (for Ni-based).
✅ Fixturing to control joint gap (0.05–0.15mm ideal).
✅ Post-brazing inspection via X-ray or dye penetrant.
✅ Stress-relief anneal at 400°C for 2 hours (for Ni-based joints).
✅ Corrosion protection coating if used in humid environments.
✅ Documentation of all process parameters for traceability.
Final Thought: Brazing Mo plates isn’t about finding the “perfect” solder—it’s about aligning material properties with your application’s demands. As one engineer put it, “AgCuTi is like a reliable sedan; Ni-based is a tank. Choose based on the road ahead.”
