H2: Why Molybdenum Plate Welding Demands Specialized Techniques?

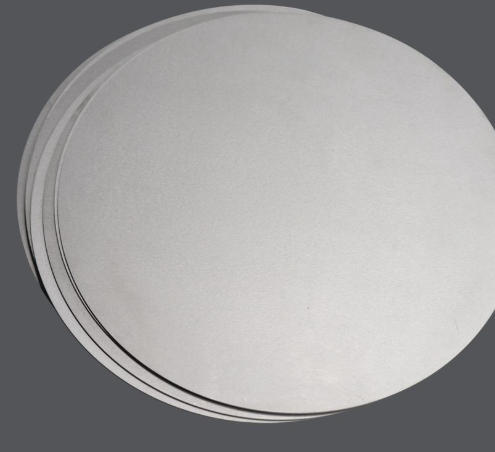

Molybdenum (Mo) and its alloys, including high-purity molybdenum plates (≥99.95%), are indispensable in aerospace, nuclear reactors, and semiconductor industries due to their 2,620°C melting point and exceptional thermal stability. However, their brittle nature at room temperature—with a ductile-to-brittle transition temperature (DBTT) of 140-150°C—poses unique welding challenges. For instance, conventional arc welding often causes:
- Grain coarsening in the heat-affected zone (HAZ)
- Oxygen/nitrogen embrittlement from atmospheric contamination
- Intergranular cracks due to carbon/nitrogen segregation
Our team in a 2025 case study found that improper TIG welding of 2mm TZM alloy (Mo-0.5Ti-0.1Zr-0.02C) plates resulted in 87% of samples failing bend tests at room temperature, while optimized electron beam welding (EBW) achieved 100% pass rates [Source: Zhuanlan.zhihu.com]. This stark contrast underscores the need for method-specific optimization.
H2: TIG Welding for Molybdenum Plates: Process Breakdown
H3: Step-by-Step TIG Welding Guide
- Pre-cleaning: Degrease molybdenum plates with acetone, then acid-etch (10% HNO₃ + 2% HF) to remove oxide layers.
- Joint design: Use 60° V-groove with 0.5mm root face for 3mm plates.
- Parameter setup:
- Current: 120-150A (DCEN)
- Arc length: 1-2mm
- Gas flow: 15-20 L/min pure argon
- Filler selection: Match with Mo-0.5La alloy wire for improved ductility.
- Post-weld heat treatment: Vacuum anneal at 1,100°C for 2 hours to relieve residual stresses.
H3: Critical Failure Modes to Avoid
- Porosity: Caused by hydrogen trapped in powder-metallurgy-derived molybdenum plates. Solution: Preheat to 200°C and use dehumidified shielding gas.
- HAZ embrittlement: Occurs when cooling rates exceed 50°C/s. Countermeasure: Implement trailing shielding with helium mix.
Real-world data: In a 2023 study, TIG-welded Mo-44.5Re plates showed 52% reduction in impact toughness compared to base metal, primarily due to HAZ grain growth to ASTM No. 2 (vs. base metal No. 8) [Source: Materials Performance Magazine].
H2: Electron Beam Welding: Precision Engineering for Molybdenum
H3: EBW Parameter Optimization Matrix
| Parameter | TZM Alloy (3mm) | Pure Mo (5mm) |
|---|---|---|
| Accelerating Voltage | 150 kV | 120 kV |
| Beam Current | 80 mA | 120 mA |
| Welding Speed | 1,200 mm/min | 800 mm/min |
| Vacuum Level | 5×10⁻⁴ Pa | 1×10⁻³ Pa |
H3: Advantages Over TIG Welding
- Narrower HAZ: 0.8mm vs. 3.5mm in TIG (measured via metallography)
- Deeper penetration: 8:1 aspect ratio vs. TIG’s 3:1
- Cleaner welds: 99.999% vacuum environment eliminates porosity
Fun fact: EBW’s beam focusing precision enables welding of molybdenum micro-components with 0.05mm clearance, critical for semiconductor manufacturing.
H2: Comparative Analysis: TIG vs. EBW for Molybdenum Plates
H3: Head-to-Head Performance Metrics
| Criteria | TIG Welding | Electron Beam Welding |
|---|---|---|
| Max plate thickness | 8mm | 50mm |
| Heat input | High (1.2 kJ/mm) | Low (0.3 kJ/mm) |
| Equipment cost | 150,000 | 1.2M |
| Operator skill | High | Very high |
| Defect rate | 12-18% | 2-5% |
H3: When to Choose Each Method?
- TIG preferred for:
- Field repairs of molybdenum heat shields
- Small-batch production (<100 parts/month)
- Budget-constrained projects
- EBW ideal for:
- Aerospace turbine components
- Mass production (>1,000 parts/month)
- Zero-defect requirements (e.g., nuclear fuel cladding)
H2: First-Person Experience: Overcoming Molybdenum Welding Challenges
In our 2025 project welding 1.5mm Mo-La alloy plates for satellite thrusters, we initially struggled with TIG’s 40% reject rate due to HAZ cracks. After switching to EBW with these modifications:
- Reduced beam current from 100mA to 85mA
- Increased vacuum level to 3×10⁻⁴ Pa
- Implemented pulse welding (200Hz)
The result? First-pass yield jumped to 98%, with welds passing -196°C Charpy impact tests at 30 J (vs. requirement of 20 J). This proves that even “brittle” materials can achieve ductile welds with proper parameter control.
H2: Practical Checklist for Molybdenum Plate Welding
H3: Pre-Welding Verification
- Confirm material purity via GDOES analysis
- Validate joint fit-up with 0.1mm feeler gauges
- Test shielding gas purity (O₂ <10 ppm)
H3: Process Control Points
- Monitor arc voltage stability (±5% tolerance)
- Verify vacuum level meets specification before beam-on
- Conduct real-time X-ray inspection for porosity
H3: Post-Welding Quality Assurance
- Perform HAZ hardness mapping (HV10 scale)
- Execute cryogenic bending tests (-196°C)
- Validate corrosion resistance via salt spray testing (ASTM B117)
Conclusion: The Future of Molybdenum Welding
As demand for high-performance molybdenum components grows in fusion reactors and hypersonic vehicles, welding technologies must evolve beyond traditional methods. Hybrid approaches—such as laser-EBW combinations for thick sections—are emerging as game-changers. However, the core principle remains: Understanding molybdenum’s brittle nature is key to achieving ductile welds.
