Introduction: The Strategic Importance of Molybdenum Rods

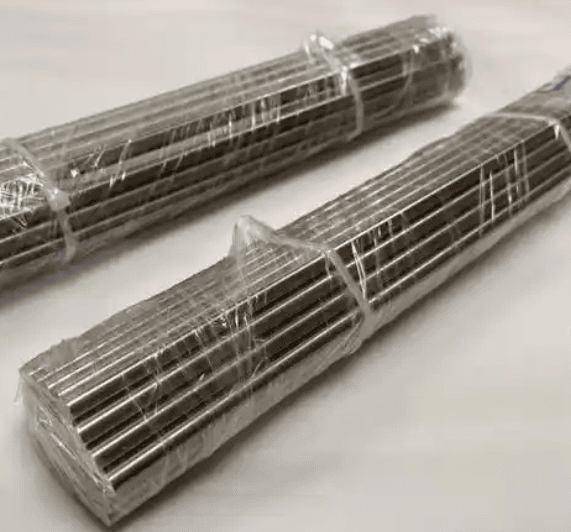

Molybdenum rods (molybdenum bar/molybdenum alloy rods) represent the pinnacle of refractory metal processing technology, combining extreme temperature resistance (melting point: 2,620°C) with exceptional mechanical strength. These cylindrical components serve as critical elements in:
- Aerospace engine nozzles
- Semiconductor manufacturing equipment
- Medical radiation shielding systems
- High-temperature furnace heating elements
The global molybdenum rod market, projected to reach $1.2 billion by 2027, is driven by demand from electric vehicle battery production and 5G infrastructure development. This comprehensive guide dissects the 12-stage production process that transforms molybdenum ore into precision-engineered rods meeting ASTM B386 and GB/T 3462-2007 standards.
1. Raw Material Preparation: From Mineral to Metal Powder
1.1 Mineral Extraction & Purification
The journey begins with molybdenite (MoS₂) ore containing 0.1-0.5% molybdenum. Through a multi-stage flotation process, concentrate grades are elevated to 45-52% MoS₂. Key purification steps include:
- Roasting: Convert MoS₂ to MoO₃ at 650-700°C using fluidized bed reactors
- Leaching: Ammonium hydroxide solution extracts molybdenum as ammonium molybdate
- Crystallization: Controlled cooling produces high-purity (99.95%+) MoO₃ crystals
1.2 Hydrogen Reduction
The purified oxide undergoes two-stage hydrogen reduction in tube furnaces:
- First Reduction: MoO₃ → MoO₂ at 600-700°C (ΔH = -113 kJ/mol)
- Second Reduction: MoO₂ → Mo at 950-1,100°C (ΔH = -145 kJ/mol)
This process yields molybdenum powder with:
- Particle size: 0.1-6.0 μm (D50: 2.3 μm)
- Specific surface area: 0.5-3.0 m²/g
- Oxygen content: <0.05 wt%
2. Powder Compaction: Shaping the Green Body
2.1 Cold Isostatic Pressing (CIP)
The molybdenum powder is encapsulated in rubber/polyurethane molds and subjected to 200-300 MPa hydraulic pressure. This isotropic compaction ensures:
- Uniform density distribution (≥95% TD)
- Minimal edge effects compared to uniaxial pressing
- Green body strength: 15-25 MPa (sufficient for handling)
2.2 Pre-sintering Treatment
To enhance mechanical integrity before final sintering, green bodies undergo:
- Low-temperature annealing: 800-1,000°C in hydrogen atmosphere
- Density optimization: 92-94% TD achieved through partial neck formation between particles
3. High-Temperature Sintering: Achieving Full Density
3.1 Resistance Sintering Furnaces
The pre-sintered rods enter vertical graphite furnaces equipped with:
- Zirconia heating elements (max temperature: 2,400°C)
- Argon/hydrogen protective atmosphere (O₂ < 10 ppm)
- Multi-zone temperature control (±5°C uniformity)
3.2 Sintering Parameters
Critical process variables include:
- Temperature: 2,100-2,250°C (above molybdenum’s recrystallization temperature)
- Holding time: 4-8 hours (dependent on rod diameter)
- Pressure: 1-5 MPa (applied via graphite dies)
- Cooling rate: 50-100°C/hour (to prevent thermal stress cracking)
Final product specifications:
- Density: ≥10.18 g/cm³ (99.8% TD)
- Grain size: 5-15 μm (ASTM E112)
- Porosity: <0.1% (mercury porosimetry)
4. Thermo-Mechanical Processing: Enhancing Mechanical Properties
4.1 Hot Rotary Forging
Sintered rods undergo multi-pass forging at 1,200-1,500°C using:
- Radial forging machines (impact energy: 50-200 kJ/stroke)
- Die temperatures maintained within ±20°C of setpoint
- Reduction ratio: 3:1 to 5:1 per pass
This process achieves:
- Dynamic recrystallization (grain refinement to 2-8 μm)
- Yield strength improvement: 650-850 MPa (from 450 MPa)
- Elongation: 15-25% (ASTM E8)
4.2 Intermediate Annealing
Between forging passes, rods are annealed at 1,000-1,200°C to:
- Relieve processing stresses
- Homogenize microstructure
- Prevent edge cracking during subsequent deformation
5. Precision Machining: Final Dimensioning & Surface Finish
5.1 CNC Turning & Milling
Using polycrystalline diamond (PCD) tooling, rods are processed to:
- Diameter tolerance: ±0.05 mm (for Ø2-100 mm rods)
- Length tolerance: ±1 mm (for ≤2,000 mm lengths)
- Roundness: <0.03 mm (three-point measurement)
5.2 Surface Treatment Options
Based on application requirements:
- Polished finish: Ra <0.1 μm (electropolishing + diamond paste buffing)
- Ground finish: Ra 0.2-0.4 μm (silicon carbide wheel grinding)
- Black oxide coating: For enhanced corrosion resistance in acidic environments
- TZM alloy coating: For high-temperature oxidation protection (up to 1,800°C)
Quality Control: Ensuring Product Excellence
Each molybdenum rod undergoes rigorous inspection:
- Dimensional verification: Laser scanning with 0.001 mm resolution
- Metallurgical analysis: SEM/EDS for grain structure and impurity detection
- Mechanical testing: Universal testing machine for tensile/yield strength
- Non-destructive testing: Ultrasonic flaw detection (sensitivity: 0.1 mm² defect)
Market Applications & Future Trends
The molybdenum rod market is segmented by:
- Aerospace: 35% market share (turbine blades, rocket nozzles)
- Electronics: 28% (sputtering targets, X-ray anodes)
- Industrial: 22% (heating elements, glass melting electrodes)
- Medical: 15% (radiation shields, surgical instruments)
Emerging trends include:
- Additive manufacturing: Laser powder bed fusion for complex geometries
- Nanostructured molybdenum: Enhanced strength via severe plastic deformation
- Hybrid materials: Mo-W-Re alloys for extreme environments (>2,000°C)
Conclusion: The Art of Refractory Metal Engineering
The production of molybdenum rods represents the convergence of materials science, precision engineering, and thermal processing expertise. From the careful selection of molybdenite ore to the final polishing of high-precision components, each stage demands meticulous control to achieve the exceptional properties that make these rods indispensable in demanding industrial applications. As additive manufacturing and nanostructuring technologies evolve, the molybdenum rod processing landscape will continue to innovate, pushing the boundaries of what’s possible with this remarkable refractory metal.
