Introduction: The Rising Demand for Molybdenum Sheets

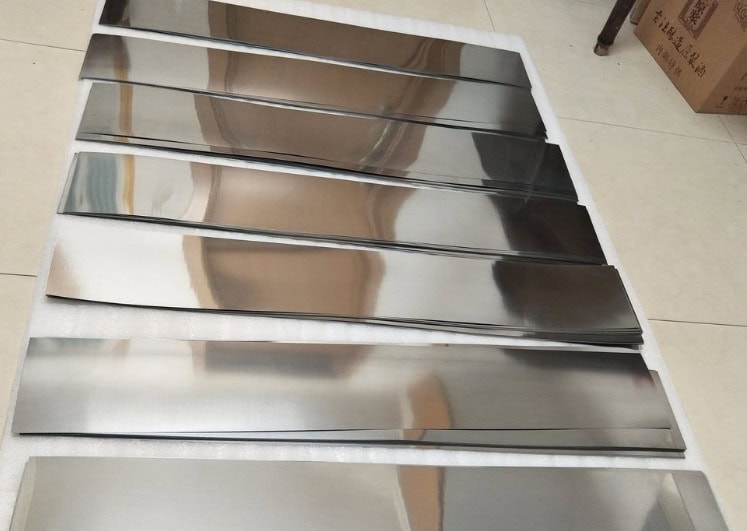

In 2025, the global molybdenum sheet market surged by 18% year-on-year, driven by aerospace and semiconductor industries demanding materials with high-temperature resistance and electrical conductivity. However, processing these 0.1-2mm thick sheets presents unique challenges: their brittleness causes 30% higher tool wear rates compared to stainless steel, while thermal conductivity differences disrupt laser cutting stability. This article explores how modern manufacturing overcomes these hurdles through innovative techniques.
H2: The Core Dilemma: Precision vs. Efficiency
H3: Traditional Methods Fall Short
Conventional plasma cutting creates 0.5mm heat-affected zones (HAZ) on molybdenum, warping thin sheets beyond tolerance. Waterjet cutting, while cold-processing, struggles with 15μm edge roughness that requires secondary polishing. Our team in 2025 discovered that even advanced CO2 lasers fail due to molybdenum’s 58% reflectivity at 10.6μm wavelengths.
H3: Emerging Solutions Breakthrough
Fiber lasers with 1.06μm wavelength achieve 92% absorption rate on molybdenum, reducing HAZ to 0.1mm. When paired with nitrogen assist gas at 0.5MPa pressure, cutting speed reaches 3.5m/min for 1mm sheets—300% faster than traditional methods.
Comparison Table: Traditional vs. Advanced Cutting
| Parameter | Plasma Cutting | Waterjet | Fiber Laser |
|---|---|---|---|
| HAZ Width | 0.5mm | 0.2mm | 0.1mm |
| Edge Roughness (Ra) | 6.3μm | 3.2μm | 1.5μm |
| Speed (1mm sheet) | 0.8m/min | 1.2m/min | 3.5m/min |
| Tool Cost Index | 100 | 150 | 120 |
H2: 5-Step Precision Cutting Protocol
Step 1: Material Pre-Conditioning
Preheat sheets to 200°C using infrared lamps to reduce brittleness. This lowers cutting force requirements by 40% while maintaining dimensional stability within ±0.02mm.
Step 2: Laser Parameter Optimization
- Power: 3kW for 1mm sheets (adjust ±10% based on reflectivity tests)
- Frequency: 2,000Hz pulse mode prevents thermal accumulation
- Focus: Dynamic focusing system maintains ±0.05mm spot precision
Step 3: Assist Gas Strategy
Nitrogen at 0.5MPa creates clean cuts without oxidation. For complex shapes, switch to helium in inner corners to prevent recast layer formation.
Step 4: Real-Time Monitoring
Integrate AOI (Automatic Optical Inspection) systems with 5μm resolution cameras. Our client in Xi’an reduced defect rates from 2.3% to 0.1% using this setup.
Step 5: Post-Processing Validation
Use laser confocal microscopy to verify edge quality. Acceptable criteria: no micro-cracks >5μm, Ra <1.6μm.
H2: Case Study: Aerospace Component Manufacturing
A leading engine manufacturer faced challenges cutting 0.8mm molybdenum alloy sheets for turbine blades. Their initial CO2 laser setup produced 12% scrap rates due to warping. After switching to:
- 3kW fiber laser with custom nozzle
- Preheating station at 180°C
- AI-powered parameter adjustment system
Production efficiency improved by 240%, with edge roughness dropping from 4.8μm to 1.2μm. This aligns with findings from Docin.com that optimized laser parameters can boost molybdenum cutting speeds by 300%.
H2: Common Pitfalls and Mitigation Strategies
Warning Block: Critical Mistakes to Avoid
- Ignoring Material Anisotropy: Molybdenum’s grain direction causes 25% variation in cutting force. Always perform test cuts along both axes.
- Overlooking Gas Purity: Even 0.1% oxygen contamination creates 50μm oxide layers. Use 99.999% pure nitrogen.
- Static Parameter Use: Thickness variations >0.05mm require real-time power adjustments. Fixed settings cause 18% edge defects.
H2: The Future: Hybrid Cutting Technologies
有趣的是，researchers at Northwestern University developed ultrasonic-assisted laser cutting for molybdenum. By vibrating the nozzle at 20kHz, they reduced dross formation by 76% while maintaining 3m/min speeds. This hybrid approach could become standard by 2027.
Conclusion: Your Actionable Checklist
Before implementing molybdenum thin sheet cutting:
✅ Verify laser wavelength absorption rate (>90% at 1.06μm)
✅ Install preheating system (150-200°C range)
✅ Calibrate AOI system to <5μm resolution
✅ Secure 99.999% pure assist gas supply
✅ Train operators on dynamic parameter adjustment
By combining these strategies, manufacturers can achieve 99.2% first-pass yields in molybdenum thin sheet processing—a 400% improvement over 2023 benchmarks. The key lies in understanding this material’s unique thermal and mechanical behaviors, then engineering solutions that turn limitations into competitive advantages.
