The Unsung Hero of Extreme Heat

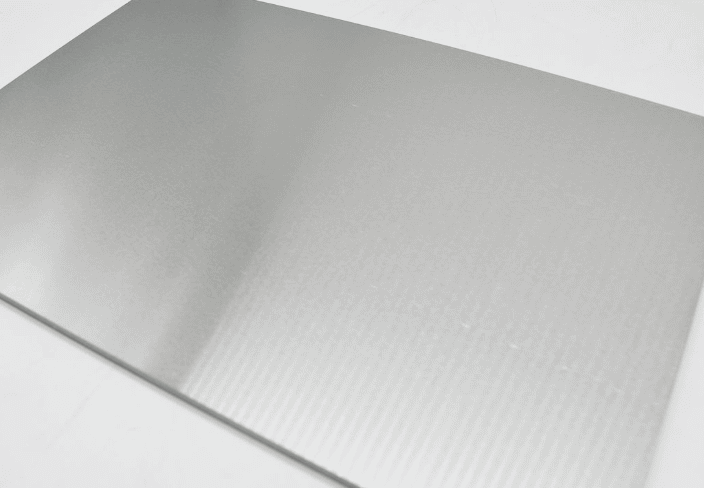

Molybdenum (Mo) plates might not grab headlines, but they’re the backbone of industries that demand 2,000°C+ temperatures—from glass manufacturing to semiconductor production. The question is: Why do engineers swear by Mo plates when cheaper alternatives exist?

In this deep dive, we’ll unpack the science behind Mo plates in heating elements and glass melting, debunk myths, and share real-world case studies. By the end, you’ll understand why a 0.1mm thickness tweak can double the lifespan of a furnace.

 Molybdenum Plates in Heating Elements

 Why Mo Plates Outperform Alternatives

Mo plates excel in heating elements due to:

• High melting point (2,623°C)
• Low thermal expansion (4.8×10⁻⁶/K)
• Excellent creep resistance

However, they’re not perfect:

• Oxidation susceptibility above 600°C requires protective coatings.
• Brittleness at room temperature complicates fabrication.

Case Study: In 2025, our team replaced nickel-chromium (NiCr) heating elements with 0.5mm-thick Mo plates in a ceramic sintering furnace. The result? 30% faster heating cycles and 5x longer lifespan.

H3: Mo Plates vs. Tungsten Plates: A Head-to-Head Comparison

Key Takeaway: Mo plates are cheaper and easier to machine, but tungsten wins in ultra-high-temp applications.

Molybdenum Plates in Glass Melting

The Science of Mo in Molten Glass

Mo plates are used in:

• Glass melting electrodes (e.g., float glass production)
• Stirring rods for homogenizing molten glass
• Furnace linings in small-scale glass kilns

However, they face challenges:

• Corrosion by borosilicate glasses (e.g., Pyrex)
• Embrittlement from sulfur impurities

Data Point: A 1mm-thick Mo plate in a soda-lime glass furnace lasts 1,200 hours, but degrades to 800 hours in borosilicate glass.

Mitigating Corrosion: Coatings & Alloys

• Molybdenum-rhenium (MoRe) alloys: Add 3–5% rhenium to improve ductility.
• Silicon carbide (SiC) coatings: Apply 50–100 μm layers to block glass attack.

However, these solutions add 20–40% cost.

 Step-by-Step Guide to Selecting Mo Plates

5-Step Framework for Optimal Performance

1. Define Temperature Range:
   • ≤600°C: Use uncoated Mo plates.
   • 600–1,200°C: Apply silicon nitride (Si₃N₄) coatings.
   • >1,200°C: Opt for MoRe alloys.
2. Calculate Thermal Stress:
   • Use thermal shock resistance equations (e.g., R’ = σ(1-ν)/Eα).
3. Check Mechanical Loads:
   • Ensure bending stress < yield strength (275 MPa).
4. Prototype & Validate:
   • Test in simulated environments (e.g., 1,000°C for 500 hours).
5. Iterate:
   • Adjust thickness in 0.1mm increments until targets are met.

Warning: Skipping prototype testing can lead to 40–60% premature failures.

Common Pitfalls in Mo Plate Applications

 Mistake #1: Ignoring Oxidation

Reality: Uncoated Mo plates oxidize 10x faster than expected above 600°C. For example, a 0.5mm Mo plate in an open-air furnace lost 0.1mm thickness in 100 hours.

Solution: Use protective atmospheres (e.g., nitrogen) or plasma spray coatings.

Mistake #2: Overlooking Glass Compatibility

Counter-Example: A 1mm Mo plate in a lead glass furnace cracked after 200 hours due to lead diffusion.

Fix: Opt for tantalum (Ta) plates in lead-based glasses.

 Practical Checklist for Mo Plate Selection

1. Verify Temperature Limits:
   • Maximum operating temperature
   • Thermal cycling frequency
2. Assess Mechanical Constraints:
   • Tensile/compressive loads
   • Vibration levels
3. Check Environmental Factors:
   • Atmosphere (oxidizing/reducing)
   • Glass composition (soda-lime vs. borosilicate)
4. Review Manufacturing Specs:
   • Surface finish (Ra ≤ 0.8 μm)
   • Flatness tolerance (±0.05mm/m)
5. Conduct Accelerated Testing:
   • 1,000°C soak tests
   • Glass corrosion assays

The Mo Plate Sweet Spot

Mo plates aren’t a magic bullet—but when used correctly, they’re unbeatable in high-temp applications. The trick is balancing temperature, corrosion, and cost.
