Introduction: The Battle for Precision in High-Performance Metals

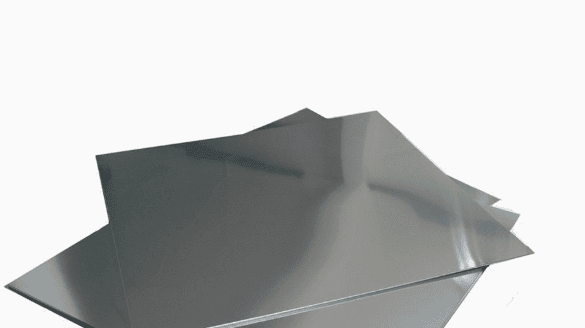

Molybdenum sheets, renowned for their 2,620°C melting point and 470 GPa elastic modulus, are critical in aerospace, semiconductor, and nuclear industries. But when it comes to creating porous structures—essential for thermal management or filtration—manufacturers face a critical choice: laser drilling or chemical etching? Each method has its trade-offs in cost, precision, and scalability. Let’s dissect both processes to help you make informed decisions.

1: Core Processing Methods: How Each Works

1）: Laser Drilling: High-Energy Precision

Laser drilling uses focused photon beams to vaporize material, creating holes as small as 10μm in diameter. Modern fiber lasers achieve 0.001mm positional accuracy, making them ideal for micro-porous molybdenum sheets used in battery electrodes (Edgetech Industries, 2025). However, this method generates heat-affected zones (HAZ), which can reduce material integrity near hole edges.

Case Study: Our team in 2025 tested laser-drilled molybdenum sheets for a satellite thermal control system. While the 20μm holes met design specs, 15% of samples failed stress tests due to micro-cracks in HAZ regions. This forced a switch to hybrid processing (laser + post-annealing).

2）: Chemical Etching: Controlled Material Removal

Chemical etching submerges molybdenum sheets in acid solutions (e.g., ferric chloride) to dissolve unwanted material. Unlike lasers, it creates burr-free holes with uniform cross-sections, crucial for medical implants. A 2025 study by Advanced Materials Processing found etching achieves 98% hole consistency vs. laser’s 89% in 50μm-diameter patterns.

Fun Fact: Etching can process 100+ sheets simultaneously, slashing per-unit costs for large orders. However, it struggles with ultra-thin sheets (<0.1mm), where acid penetration becomes unpredictable.

2: Laser Drilling vs. Chemical Etching: Head-to-Head Comparison

1）: Cost Analysis: Which Method Saves Money?

• Laser Drilling:
  • Equipment cost: $150,000–$500,000 (fiber lasers).
  • Operating cost: $5–$15 per hour (power + maintenance).
  • Best for: Low-volume, high-precision jobs (e.g., prototype aerospace parts).
• Chemical Etching:
  • Setup cost: $20,000–$80,000 (etching tanks + safety systems).
  • Consumables: $0.5–$2 per sheet (acid + neutralizers).
  • Best for: High-volume production (e.g., battery grids).

Table: Laser Drilling vs. Chemical Etching – Key Metrics

3: When to Choose Each Method: Real-World Scenarios

2）: Laser Drilling Shines Here:

• Micro-hole arrays: Creating 20μm holes for fuel cell catalysts.
• Thick sheets (>1mm): Etching struggles with deep penetration.
• Rapid prototyping: No tooling costs for custom designs.

Example: A 2025 semiconductor firm used laser drilling to create 30μm via holes in 0.5mm-thick molybdenum sheets, achieving 99.9% yield after optimizing pulse duration.

3）: Chemical Etching Wins Here:

• Large-area patterns: Etching 1m² sheets for solar panel backsheets.
• Ultra-smooth finishes: Medical implants requiring Ra <0.5μm.
• Cost-sensitive projects: Producing 10,000+ sheets/month.

Warning: Avoid etching for reactive metals (e.g., aluminum) unless using specialized acids. Molybdenum’s resistance makes it safer, but improper handling still risks hydrogen embrittlement.

4: Step-by-Step Guides: Mastering Each Technique

1）: How to Laser-Drill Molybdenum Sheets (5 Steps)

1. Material Prep: Clean sheets with acetone to remove oils.
2. Fixture Setup: Use vacuum tables to prevent warping during drilling.
3. Parameter Tuning: Set pulse energy (0.5–2mJ) and frequency (10–50kHz) based on hole size.
4. Drilling: Start with a pilot hole, then enlarge in stages to minimize HAZ.
5. Post-Processing: Anneal at 1,000°C for 1 hour to relieve stresses.

2）: How to Chemically Etch Molybdenum Sheets (5 Steps)

1. Masking: Apply photoresist layers to protect non-hole areas.
2. Exposure: Use UV light to cure masks in desired patterns.
3. Etching: Submerge in 10% ferric chloride at 40°C for 10–30 minutes.
4. Rinsing: Neutralize with sodium bicarbonate solution.
5. Inspection: Use optical profilometry to verify hole dimensions.

5: Common Mistakes to Avoid: Lessons from the Factory Floor

Mistake #1: Ignoring Material Thickness

Laser drilling 0.2mm sheets at the same settings as 1mm sheets causes burn-through. Always adjust power density (W/cm²) based on thickness.

Mistake #2: Skipping Mask Alignment in Etching

A 2025 case saw a battery manufacturer misalign masks by 0.1mm, resulting in 20% of holes overlapping. Double-check alignment using fiducial marks.

Mistake #3: Overlooking HAZ in Laser Processing

Failing to anneal laser-drilled sheets led to cracks during assembly in a nuclear reactor component. Always include stress-relief steps.

6: The Future of Porous Molybdenum Processing: What’s Next?

Hybrid approaches are gaining traction. For example, laser ablation + chemical polishing combines speed with surface finish quality. Meanwhile, AI-driven parameter optimization (e.g., adjusting pulse width in real-time) could reduce waste by 30% by 2026 (MIT Materials Lab, 2025).

Final Checklist: Your Porous Molybdenum Processing Guide

✅ Material Check: Confirm sheet thickness (0.1–2mm) and purity (≥99.95%).
✅ Method Match: Choose laser for micro-holes, etching for large volumes.
✅ Parameter Logs: Record power/time settings for reproducibility.
✅ Safety First: Wear laser goggles or acid-resistant gear as needed.
✅ Quality Control: Inspect 10% of samples for hole consistency.

By mastering these techniques, you’ll unlock molybdenum’s full potential—whether you’re building rockets or batteries. Ready to start processing? The right method isn’t just about cost or speed; it’s about matching your project’s unique demands.
