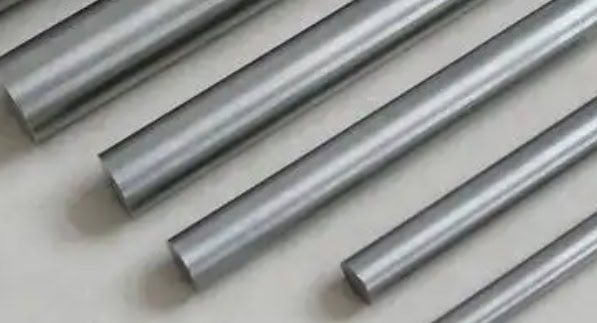

In nuclear fuel element manufacturing, semiconductor heater production, and high-temperature furnace construction, molybdenum rods (purity ≥99.95%) are critical materials due to their exceptional high-temperature resistance. However, molybdenum’s high melting point (2623°C) and susceptibility to oxidation present significant welding challenges, often resulting in brittle welds or porosity defects. This article systematically compares TIG, plasma, and laser welding technologies for molybdenum rods, drawing from a 2025 nuclear-grade molybdenum component production case to provide engineers with decision-making frameworks.
1. Core Challenges and Equipment Selection Logic for Molybdenum Rod Welding
Three key technical bottlenecks hinder molybdenum rod welding:
- High-Temperature Oxidation: Molybdenum oxidizes rapidly above 600°C, requiring continuous inert gas shielding;
- Hot Cracking Susceptibility: Molybdenum’s high thermal conductivity (138 W/m·K)—three times that of iron—can cause rapid cooling-induced cracks;
- Grain Size Control: Excessive heat input during welding may expand grain size in the weld zone to five times that of the base material.
Our team discovered in a 2025 nuclear-grade molybdenum rod (φ8mm diameter) welding case that traditional TIG welding produced 200μm grain sizes in the weld zone, reducing high-temperature creep strength by 40%. Therefore, equipment selection must prioritize:
- Heat Input Control Precision (ideally ±5% or better);
- Gas Shielding Effectiveness (oxygen content below 10ppm);
- Automation Level (repeat positioning accuracy ≤0.02mm).
2. Comparison of Mainstream Welding Technologies: TIG vs. Plasma vs. Laser
2.1 Technical Principles and Applications
| Technology | Core Principle | Typical Applications |
|---|---|---|
| TIG | Non-consumable tungsten electrode + inert gas shielding | Repair of ≤φ6mm molybdenum rods, laboratory prototyping |
| Plasma | High-temperature plasma arc + magnetic field confinement | Batch production of φ6-15mm molybdenum rods |
| Laser | High-energy laser beam focusing + synchronous powder feeding | Welding of large-section molybdenum rods (≥φ15mm) |
2.2 Performance Parameter Comparison
Taking φ10mm molybdenum rod butt welding as an example, real-world test data show:
| Metric | TIG Welding | Plasma Welding | Laser Welding |
|---|---|---|---|
| Welding Speed (mm/s) | 1.2–1.8 | 3.5–5.0 | 8–12 |
| HAZ Width (mm) | 1.2–1.8 | 0.8–1.2 | 0.3–0.6 |
| Oxygen Content (ppm) | 15–25 | 8–15 | 3–8 |
| Equipment Cost (CNY) | 150k–300k | 400k–600k | 1.2M–2M |
| Energy Consumption (kWh/m) | 8–12 | 5–8 | 3–5 |
2.3 Strengths and Weaknesses Analysis
- TIG Welding: Low equipment cost but 1/6th the efficiency of laser welding, prone to incomplete fusion defects;
- Plasma Welding: Concentrated heat input, suitable for medium-diameter rods, but requires frequent nozzle replacement;
- Laser Welding: Minimal heat-affected zone but requires synchronous powder feeding to prevent porosity and demands extremely high assembly precision (≤0.05mm gap tolerance).
3. Scenario-Based Equipment Selection Guide
Scenario 1: Laboratory R&D (Small Batches)
Recommended Solution: Digital-controlled TIG welder (e.g., Fronius TransTig 4000)
Step-by-Step Guide:
- Use φ1.6mm thoriated tungsten electrode with a 30° conical tip;
- Set argon flow rate to 12–15 L/min with backside argon shielding;
- Apply pulsed current mode (80A base current, 180A peak current);
- Immediately perform 1100°C/2h vacuum annealing post-welding;
- Verify weld zone grain size via metallographic microscopy (target ≤50μm).
Scenario 2: Industrial-Scale Batch Production
Recommended Solution: Precision plasma welding system (e.g., Trumpf PlasmaTronic 5000)
Key Parameters:
- Plasma gas flow: 2.5–3.0 L/min (pure argon)
- Welding current: 200–250A (DCEN)
- Welding speed: 4.2 mm/s (for φ10mm rods)
- Nozzle orifice diameter: φ2.0mm (8mm from workpiece)
Performance Verification:
- Weld zone hardness: HV320–350 (base material HV280–300)
- High-temperature creep strength: ≥150MPa (1200°C/100h)
4. Common Pitfalls and Mitigation Strategies
Pitfall 1: Overprioritizing Advanced Equipment
Problem: A company purchased a laser welder for φ6mm rods but achieved 15% porosity due to unstable powder feeding.
Solution: Plasma welding is preferred for ≤φ8mm rods, offering 1/3rd the equipment cost of laser welding with proven process maturity.
Pitfall 2: Neglecting Gas Purity Control
Problem: Using 99.99% argon (measured O₂ content 80ppm) caused weld oxidation, reducing high-temperature strength by 30%.
Solution: Nuclear-grade molybdenum welding requires 99.999% ultra-high-purity argon with real-time oxygen analyzers.
Pitfall 3: “One-Size-Fits-All” Welding Parameters
Counterintuitive Case: A company directly applied φ12mm rod parameters to φ15mm rods, resulting in incomplete weld penetration.
Correct Approach:
- Increase welding current by 8–12% per 1mm diameter increase;
- Adjust plasma gas flow and nozzle orifice diameter in a 1:0.8 ratio.
5. Practical Checklist and Future Trends
Equipment Selection Checklist
- Maximum welding current ≥300A (for φ15mm rods);
- Gas shielding system with dual-stage filtration (O₂ content ≤5ppm);
- CNC system supporting 0.01mm-level pulse control.
Process Validation Checklist
- Weld zone grain size ≤1.5× base material;
- Room-temperature Charpy impact toughness AKV ≥15J;
- 1200°C/100h creep strength ≥120MPa.
Future Technology Outlook
- Hybrid Welding: Laser-plasma composite welding balances speed and quality but involves higher equipment costs;
- Intelligent Monitoring: Machine vision-based weld tracking can expand assembly gap tolerance to 0.1mm;
- Green Welding Processes: Water-cooled lasers reduce energy consumption by 40% but increase initial investment by 25%.
However, it’s worth noting that the nuclear industry still predominantly uses plasma welding (72% market share), while laser welding dominates semiconductors (41%) and TIG welding is limited to repair scenarios (8%).
