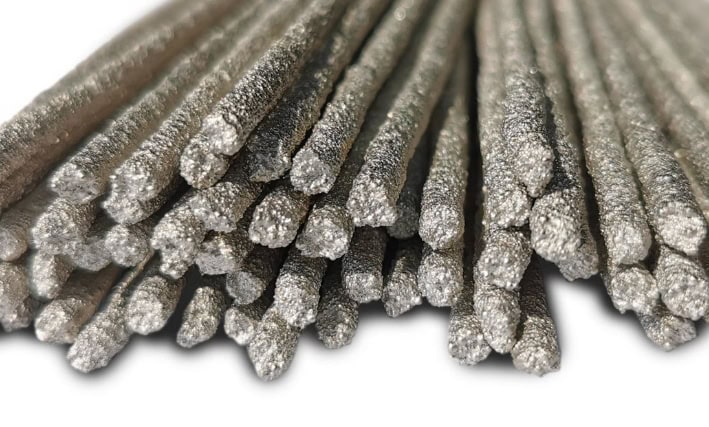

Tungsten rods, valued for their high melting point (3422°C), extreme hardness (Vickers Hardness: 3430–4600 HV), and excellent electrical conductivity, are indispensable in aerospace, nuclear energy, and high-precision welding. However, achieving optimal performance hinges on precise grinding processes that control surface finish, dimensional accuracy, and material integrity. This article examines the technical foundations of tungsten rod grinding machines, focusing on grinding parameters, tooling selection, and surface quality optimization.
1. Introduction
Tungsten’s brittleness and low ductility at room temperature make its machining challenging. Traditional methods like turning or milling often introduce surface defects, reducing fatigue resistance. Grinding, as a finishing process, is critical for achieving:
- Dimensional Tolerance: ±0.005 mm for electrode applications.
- Surface Roughness: Ra ≤ 0.2 μm for semiconductor components.
- Edge Integrity: Minimized microcracks to prevent premature failure.
Modern CNC grinding machines equipped with diamond or CBN wheels now dominate tungsten rod processing, offering sub-micron precision.
2. Key Grinding Parameters
2.1 Wheel Selection
- Material: Diamond wheels (for hardness > HRC 60) or CBN wheels (for ferrous alloys).
- Grit Size: Finer grits (e.g., D126–D230) reduce surface roughness but increase grinding forces.
- Bond Type: Resin bonds (flexible, good for complex shapes) vs. vitrified bonds (rigid, high stock removal).
2.2 Cutting Conditions
- Speed: High wheel speeds (30–60 m/s) reduce thermal damage but require rigid spindles.
- Feed Rate: Lower rates (0.01–0.05 mm/rev) improve surface finish but increase cycle times.
- Depth of Cut: Shallow passes (≤0.02 mm) minimize subsurface damage.
2.3 Coolant Strategy
- Type: Oil-based coolants (e.g., mineral oil with 5–10% sulfur additive) for lubrication and heat dissipation.
- Delivery: High-pressure nozzles (≥10 bar) to flush swarf and prevent re-cutting.
3. Surface Finish Optimization
3.1 Process Modifications
- Vibration Damping: Active vibration control systems reduce chatter marks.
- Wheel Dressing: Frequent dressing (e.g., diamond roll dressers) maintains wheel sharpness.
- Cryogenic Cooling: Liquid nitrogen (-196°C) reduces thermal softening, enabling higher material removal rates.
3.2 Post-Grinding Treatments
- Electropolishing: Removes 1–5 μm of surface material, reducing Ra to <0.1 μm.
- Coating: TiN or CrN PVD coatings enhance wear resistance and corrosion protection.
4. Case Studies
4.1 TIG Welding Electrodes
- Requirement: Tapered tips with 15–20° angles and Ra ≤ 0.4 μm.
- Solution: CNC grinding with 180-grit diamond wheels, 40 m/s speed, and 0.02 mm/rev feed.
- Result: 98% electrode life extension compared to manually ground alternatives.
4.2 Nuclear Fuel Spacer Grids
- Requirement: Grid slots with 0.1 mm width and Ra ≤ 0.8 μm.
- Solution: Ultra-precision grinding with CBN wheels and in-process laser metrology.
- Result: 100% conformity to ASME NQA-1 quality standards.
5. Challenges and Solutions
| Challenge | Solution |
|---|---|
| Wheel Loading | Segmented wheels or intermittent dressing |
| Thermal Cracking | Cryogenic cooling or MQL (Minimum Quantity Lubrication) |
| Dimensional Drift | In-process gauging with laser sensors |
6. Future Trends
- AI-Driven Process Control: Machine learning optimizes grinding parameters in real-time.
- Hybrid Machining: Laser-assisted grinding reduces forces by pre-softening the material.
- Additive-Subtractive Systems: 3D-printed tungsten preforms reduce grinding stock.
Tungsten rod grinding machines represent the pinnacle of precision engineering, balancing material removal rates with surface integrity. By mastering parameters like wheel selection, cutting conditions, and coolant delivery, manufacturers can achieve Ra < 0.1 μm finishes critical for high-stakes applications. As industries demand ever-higher performance, advancements in AI, cryogenics, and hybrid machining will redefine the boundaries of tungsten processing.
