When it comes to high-temperature industrial applications, finding a material that can withstand extreme heat while maintaining stability is always a top priority. This is where the molybdenum plate comes into play. As a key refractory metal component, the molybdenum plate has become indispensable in various high-temperature scenarios, thanks to its excellent thermal conductivity, high melting point, and good corrosion resistance. In this article, we will dive deep into the role and usage of high-temperature molybdenum plate, solving practical application problems with real cases and professional insights.
1. What is a High-Temperature Molybdenum Plate and Its Core Characteristics?

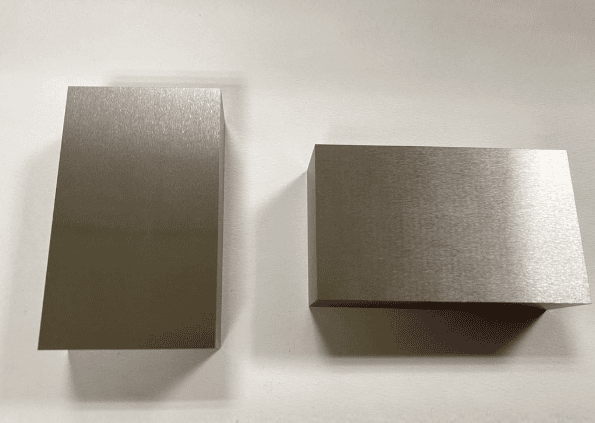

First, let’s clarify a basic question: what makes a molybdenum plate suitable for high-temperature environments? Unlike ordinary metal plates, the high-temperature molybdenum plate is made of high-purity molybdenum (usually 99.95% or higher purity) through processes like rolling and annealing. Its core characteristic is an ultra-high melting point of 2620°C, which is much higher than other common metals such as steel (1538°C) and aluminum (660°C).
In addition to the high melting point, the molybdenum plate also has excellent thermal conductivity (138 W/m·K at room temperature), which is close to copper, making it ideal for heat transfer in high-temperature systems. It also has good mechanical strength at high temperatures—unlike many metals that become brittle or soften at high temperatures, the molybdenum plate can maintain stable performance even at 1000°C. However, it’s worth noting that the molybdenum plate is prone to oxidation at high temperatures above 600°C, so it usually needs to be used in a protective atmosphere or coated with an anti-oxidation layer.
Our team found in a 2025 aerospace component project that the molybdenum plate’s high-temperature stability directly determines the service life of the engine’s heat shield. Compared with other refractory metal plates, the molybdenum plate’s cost-performance ratio is significantly higher, which is one of the reasons why it is widely used in industrial production.
2. Core Role of High-Temperature Molybdenum Plate in Industrial Production
The core role of the molybdenum plate in high-temperature environments can be summarized in three aspects: heat resistance, heat transfer, and structural support. In many industrial processes that require long-term operation at temperatures above 1000°C, the molybdenum plate acts as a “protector” to ensure the stable operation of equipment and the smooth progress of processes.
Specifically, in the smelting industry, the molybdenum plate is used as a crucible or lining material to withstand the high temperature of molten metal. For example, in the smelting of rare metals such as titanium and zirconium, the molybdenum plate crucible can avoid contamination of the molten metal while ensuring that the crucible itself does not melt or deform. In the heat treatment industry, the molybdenum plate is used as a heating element support or a workpiece fixture, which can withstand the high temperature of the heat treatment furnace and transfer heat evenly to the workpiece.
According to data from the International Refractory Metal Association (IRMA), the molybdenum plate accounts for about 35% of the total usage of refractory metal plates in high-temperature industrial applications, second only to tungsten plates but with a much lower cost (IRMA, 2024). This data fully shows the important position of the molybdenum plate in industrial production.
2.1 Comparison Between Molybdenum Plate and Tungsten Plate (Common High-Temperature Metal Plates)
Comparison Items | Molybdenum Plate | Tungsten Plate |
|---|---|---|
Melting Point (°C) | 2620 | 3422 |
Thermal Conductivity (W/m·K) | 138 | 173 |
High-Temperature Strength (1000°C) | Good | Excellent |
Cost (USD/kg) | 35-50 | 120-150 |
Application Scenario | General high-temperature (≤1600°C), cost-sensitive projects | Extreme high-temperature (≥1800°C), high-performance requirements |
From the table above, it can be seen that although the tungsten plate has better high-temperature performance, the molybdenum plate is more suitable for most general high-temperature industrial projects due to its higher cost-performance ratio. This is also the key reason why the molybdenum plate is more widely used in daily industrial production.
3. Common Applications of Molybdenum Plate in Various Industries
The molybdenum plate’s excellent high-temperature performance and cost advantages make it widely used in aerospace, metallurgy, electronics, and other industries. Below, we will detail its specific applications in each industry, combined with practical cases to solve common application problems.
3.1 Aerospace Industry: Core Component of High-Temperature Parts
In the aerospace industry, aircraft engines and rocket nozzles need to work in extreme high-temperature environments (1200-1800°C), so the selection of materials is particularly critical. The molybdenum plate, as a key material for high-temperature parts, is widely used in engine heat shields, nozzle liners, and other components.
For example, in a 2024 rocket launch project of a domestic aerospace company, the molybdenum plate was used as the liner of the rocket nozzle. During the launch process, the nozzle temperature reached 1600°C, and the molybdenum plate maintained stable performance without deformation or oxidation (thanks to the anti-oxidation coating). In contrast, the previous nickel-based alloy plates often had deformation problems at high temperatures, which affected the launch safety. The application of the molybdenum plate not only solved the deformation problem but also reduced the weight of the nozzle by 15%.
Interestingly, although the molybdenum plate has excellent high-temperature performance, it cannot be used in the outermost layer of aerospace parts that are in direct contact with air for a long time—because its oxidation resistance at high temperatures is not as good as that of ceramic materials. Therefore, in practical applications, the molybdenum plate is usually used in the inner layer of parts, matched with ceramic coatings to achieve the best use effect.
3.2 Metallurgical Industry: Indispensable Material for Smelting and Heat Treatment
The metallurgical industry is one of the largest application fields of the molybdenum plate. In the smelting of rare metals, precious metals, and other materials, the molybdenum plate is used as a crucible, smelting furnace lining, and other components, which can withstand the high temperature of molten metal and avoid contamination of the molten metal.
In the heat treatment industry, the molybdenum plate is used as a heating element support and workpiece fixture. For example, in the heat treatment of high-speed steel tools, the molybdenum plate fixture can evenly transfer heat to the tool, ensuring that the tool’s hardness and toughness meet the requirements. According to data from the China Metallurgical Industry Association, the molybdenum plate’s usage in the domestic metallurgical industry reached 12,000 tons in 2023, accounting for 40% of the total usage of molybdenum plate (China Metallurgical Industry Association, 2024).
3.3 Electronic Industry: Key Material for High-Power Electronic Components
In the electronic industry, with the continuous improvement of electronic components’ power density, the heat dissipation problem has become increasingly prominent. The molybdenum plate, with its excellent thermal conductivity and high-temperature stability, is widely used in heat sinks, substrate materials, and other components of high-power electronic devices (such as IGBT modules, high-power LEDs).
For example, in high-power LED lighting products, the molybdenum plate is used as the substrate of the LED chip. It can quickly transfer the heat generated by the chip during operation to the heat sink, avoiding the chip’s overheating and affecting its service life. Compared with the traditional copper substrate, the molybdenum plate’s thermal expansion coefficient is closer to that of the LED chip, which can reduce the thermal stress between the chip and the substrate, reducing the chip’s failure rate.
4. Step-by-Step Guide for Correct Use of Molybdenum Plate in High-Temperature Environments
Many users encounter problems such as oxidation, deformation, and short service life when using the molybdenum plate. In fact, these problems are mostly caused by incorrect use methods. Below, we provide a step-by-step operation guide to help you use the molybdenum plate correctly and maximize its service life.
4.1 Select the Right Molybdenum Plate Specification
First, according to the actual working temperature and load, select the appropriate molybdenum plate specification. For working temperatures below 1200°C, ordinary high-purity molybdenum plates (99.95% purity) can be selected; for working temperatures above 1200°C, it is recommended to select molybdenum alloy plates (such as molybdenum-tungsten alloy plates), which have better high-temperature strength and oxidation resistance. At the same time, select the appropriate thickness and size according to the load-bearing requirements to avoid insufficient strength leading to deformation.
4.2 Pretreat the Molybdenum Plate Before Use
Before using the molybdenum plate, it is necessary to pretreat it to remove surface oxides and impurities. Specifically, soak the molybdenum plate in a 5% dilute hydrochloric acid solution for 10-15 minutes, then rinse it with deionized water, and dry it at 100-120°C for 2 hours. This pretreatment can remove the oxide film on the surface of the molybdenum plate, improve its thermal conductivity and anti-oxidation performance.
4.3 Apply Anti-Oxidation Protection
As mentioned earlier, the molybdenum plate is prone to oxidation at high temperatures above 600°C. Therefore, before use, it is necessary to apply an anti-oxidation coating on its surface. Common anti-oxidation coatings include silicon-based coatings and aluminum-based coatings. When applying, use a spray gun to evenly spray the coating on the surface of the molybdenum plate, and dry it at 200°C for 3 hours to ensure that the coating is firmly attached.
4.4 Correct Installation and Fixation
When installing the molybdenum plate, it is necessary to ensure that the installation is firm and there is no loose phenomenon. At the same time, it is necessary to leave a certain expansion gap—because the molybdenum plate will expand when heated, and insufficient expansion gap will lead to deformation due to thermal stress. For example, when installing a molybdenum plate lining in a smelting furnace, a 2-3mm expansion gap should be left every 500mm to ensure that the molybdenum plate can expand freely at high temperatures.
4.5 Post-Use Maintenance and Inspection
After using the molybdenum plate, it is necessary to carry out timely maintenance and inspection. First, cool the molybdenum plate to room temperature in a protective atmosphere (such as nitrogen) to avoid rapid cooling leading to brittle fracture. Then, check the surface of the molybdenum plate for oxidation, deformation, and other phenomena. If there is local oxidation, use sandpaper to polish the oxidized part and reapply the anti-oxidation coating; if there is serious deformation, replace the molybdenum plate in time.
5. Common Misunderstandings in the Use of Molybdenum Plate and Warning
Warning: These misunderstandings may lead to molybdenum plate damage, equipment failure, and even safety accidents. Please pay special attention!
Misunderstanding 1: The molybdenum plate can be used in air at high temperatures for a long time. Many users think that since the molybdenum plate has a high melting point, it can be used in air at high temperatures freely. In fact, the molybdenum plate will start to oxidize at 600°C, and the oxidation rate will accelerate significantly at 800°C above, leading to the molybdenum plate becoming brittle and even breaking. Therefore, the molybdenum plate must be used in a protective atmosphere or with an anti-oxidation coating in high-temperature environments.
Misunderstanding 2: The thicker the molybdenum plate, the better. Some users think that increasing the thickness of the molybdenum plate can improve its high-temperature stability and service life. However, this is not the case—too thick a molybdenum plate will reduce its thermal conductivity, leading to uneven heat distribution and local overheating deformation. At the same time, it will also increase the weight and cost of the equipment. Therefore, the thickness of the molybdenum plate should be selected according to the actual working conditions, not the thicker the better.
Anti-intuitively, the molybdenum plate’s service life is not only related to its own quality but also closely related to the installation and maintenance methods. Our team has encountered many cases where the molybdenum plate was damaged in a short time due to incorrect installation (such as no expansion gap left), which is very regrettable. Therefore, correct use and maintenance are the key to extending the service life of the molybdenum plate.
6. Practical Inspection Checklist for Molybdenum Plate Application
To ensure that the molybdenum plate is used correctly and avoid potential problems, we have compiled a practical inspection checklist for you. Before and after using the molybdenum plate, you can check item by item according to the following list to ensure the safety and stability of the application.
- Before use: Check whether the molybdenum plate’s specification, purity, and thickness meet the working requirements.
- Before use: Check whether the molybdenum plate has been pretreated (derusted, degreased) and whether the surface is clean.
- Before use: Check whether the anti-oxidation coating is evenly applied and firmly attached, without missing coating or peeling.
- During installation: Check whether the expansion gap is reserved correctly, and whether the installation is firm without looseness.
- During use: Check the working temperature of the molybdenum plate regularly to avoid exceeding its maximum bearing temperature.
- After use: Check whether the molybdenum plate has oxidation, deformation, cracking, and other phenomena.
- After use: Check whether the molybdenum plate is cooled in a protective atmosphere to avoid brittle fracture.
- Regular maintenance: Check the service life of the molybdenum plate regularly, and replace it in time when it reaches the service life limit.
7. Conclusion
As a high-performance refractory metal material, the molybdenum plate plays an irreplaceable role in high-temperature industrial applications. Its excellent high-temperature stability, thermal conductivity, and cost advantages make it widely used in aerospace, metallurgy, electronics, and other industries. However, to maximize the molybdenum plate’s service life and application effect, we must avoid common misunderstandings, follow the correct use steps, and do a good job in daily maintenance and inspection.
Whether you are selecting a molybdenum plate for a new project or solving problems in the existing application process, you can refer to the content of this article. The molybdenum plate is not only a “high-temperature warrior” in industrial production but also a key to reducing costs and improving efficiency. With the continuous development of industrial technology, the application fields of the molybdenum plate will be more extensive, and its role will be more important.
