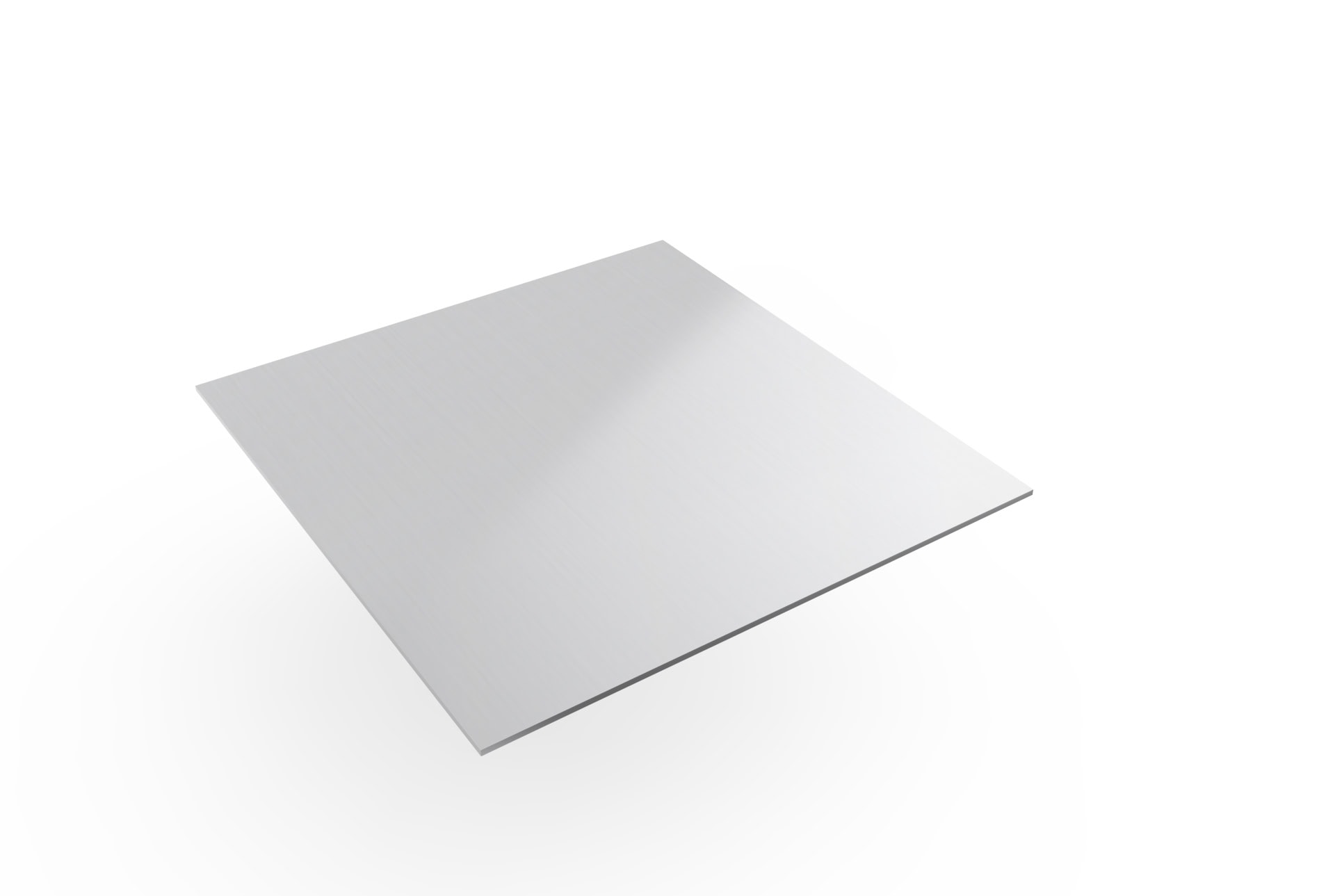

CHEMETAL USA specializes in the manufacturing of tungsten heavy alloy sheet. We take pride in offering tungsten heavy alloy sheet with a range of thickness from 0.012″ (3 mm) to less than 0.004″ (0.1 mm). Tungsten heavy alloy sheet contains tungsten content ranging from 80%-98% with small amounts of molybdenum, nickel, iron and copper elements. After going through the mixing, pressing and sintering process, tungsten is combined with the other metal elements beginning as a form of powders. Thanks to our manufacturing team’s hard work and close attention to detail, we are able to keep our strong advantage in the competitive market. The quality received by our customer is guaranteed to have the required flatness, roughness and machinability. CHEMETAL USA is capable of offering various types of Tungsten sheet, Tungsten Heavy Alloy sheet and Copper Tungsten sheet that all meet a consistently high standard of flatness, roughness and machinability. We are also able to provide a fast lead time and handle large-volume contracts. CONTACT US and download our PRODUCT CATALOG to learn more about our Tungsten products.
Tungsten Alloy Plate | |
| Thickness | 0.120″ (3 mm) to 2″ (50 mm) |
| Width | Maximum 20″ (500mm) |
| Length | Maximum 80″ (2000mm) |
Tungsten Alloy Sheet | |
| Thickness | 0.004″ (0.1 mm) to 0.120″ (3 mm) |
| Width | Maximum 20″ (500mm) |
| Length | Maximum 80″ (2000mm) |
| Surface | Ground, Chemical Cleaned, As rolled |
| Composition | WNiFe, WNiCu |
| Standard | ASTM B 777, AMS-T-21014, Mil-T-21014 |
Precision Machined Tungsten Alloy Sheet
With years of experience in handling tungsten alloy materials, our highly trained technicians are skilled in offering the following machining services for a variety of molybdenum sheets made from unalloyed Tungsten, Tungsten Nickle Copper alloy, Tungsten Nickle Iron alloy, Copper Tugnsten, Lanthanated Tungsten.
- Turning
- Milling
- Drilling
- Cutting
- Grinding
- Stamping
- EDM Machining
Standard Sheet Thickness
| Form | Size inch | Size mm | Size inch | Size mm | Size inch | Size mm | Size inch | Size mm |
| Plate/Sheet | 0.002 | 0.05 | 0.05 | 2.286 | 0.27 | 6.858 | 0.75 | 19.05 |
| Plate/Sheet | 0.004 | 0.10 | 0.08 | 2.49 | 0.3 | 7.62 | 0.785 | 19.99 |
| Plate/Sheet | 0.002 | 0.50 | 0.1 | 2.54 | 0.313 | 7.938 | 1 | 25.4 |
| Plate/Sheet | 0.030 | 0.75 | 0.118 | 2.99 | 0.350 | 7.95 | 1.125 | 28.575 |
| Plate/Sheet | 0.039 | 1.0 | 0.125 | 3.175 | 0.375 | 9.53 | 1.187 | 30.15 |
| Plate/Sheet | 0.050 | 1.25 | 0.15 | 3.81 | 0.395 | 10 | 1.25 | 31.75 |
| Plate/Sheet | 0.060 | 1.50 | 0.155 | 4.0 | 0.40 | 10.4 | 1.375 | 34.925 |
| Plate/Sheet | 0.068 | 1.75 | 0.18 | 4.76 | 0.44 | 11.113 | 1.5 | 38.1 |
| Plate/Sheet | 0.070 | 1.80 | 0.195 | 5.01 | 0.5 | 12.7 | 1.8 | 45.72 |
| Plate/Sheet | 0.075 | 1.90 | 0.2 | 5.08 | 0.60 | 15.011 | 1.9 | 48.2 |
| Plate/Sheet | 0.0787 | 2.0 | 0.25 | 6.35 | 0.625 | 15.875 | 2.0 | 50.8 |
Tungsten Heavy Alloy Standard
| ASTM B 777 | Class 1 | Class 2 | Class 3 | Class 4 | |
| Tungsten Nominal % | 90 | 92.5 | 95 | 97 | |
| Density (g/cc) | 16.85-17.25 | 17.15-17.85 | 17.75-18.35 | 18.25-18.85 | |
| Hardeness (HRC) | 32 | 33 | 34 | 35 | |
| Utimate Tensile Strength | ksi | 110 | 110 | 105 | 100 |
| Mpa | 758 | 758 | 724 | 689 | |
| Yield Strength at 0.2% off-set | ksi | 75 | 75 | 75 | 75 |
| Mpa | 517 | 517 | 517 | 517 | |
| Elongation (%) | 5 | 5 | 3 | 2 | |
| AMS-T-21014 | Class 1 | Class 1 | Class 2 | Class 2 | Class 3 | Class 3 | Class 4 |
| Composition | 90W7Ni3Fe | 91W6Ni3Fe | 92W5Ni3Fe | 93W4Ni3Fe | 95W3Ni2Fe | 96W3Ni1Fe | 97W2Ni1Fe |
| Density (g/cm3) | 17.1±0.15 | 17.25±0.15 | 17.50±0.15 | 17.60±0.15 | 18.10±0.15 | 18.30±0.15 | 18.50±0.15 |
| Heat Treatment | Sintering | Sintering | Sintering | Sintering | Sintering | Sintering | Sintering |
| Tensile Strength (Mpa) | 900-1000 | 900-1000 | 900-1000 | 900-1000 | 920-1100 | 920-1100 | 920-1100 |
| Elongation (%) | 18-29 | 17-27 | 16-26 | 16-24 | 10-22 | 8-20 | 6-13 |
| Hardness (HRC) | 24-28 | 25-29 | 25-29 | 26-30 | 27-32 | 28-34 | 28-36 |
| Mil-T-21014 | Class1 | Class1 | Class 2 | Class 3 | Class 3 | Class 4 |
| Composition | 90%W, 6%Ni4%Cu | 90%W, 7%Ni3%Fe | 92.5%W, 5.25%Ni 2.25%Fe | 95%W, 3.5%Ni 1.5% Cu | 95%W, 3.5%Ni 1.5%Fe | 97%W, 2.1%Ni 0.9%Fe |
| Density (gm/cc; lbs/in3) | 17;0.614 | 17;0.614 | 17.5;0.632 | 18;0.65 | 18;0.65 | 18.5;0.668 |
| Hardness (RC) | 24 | 25 | 26 | 27 | 27 | 28 |
| Ultimate Tensile Strength (PSI) | 110,000 | 120,000 | 114,000 | 110,000 | 120,000 | 123,000 |
| Yield Strength, . 2% Offset (PSI) | 80,000 | 88,000 | 84,000 | 85,000 | 90,000 | 85,000 |
| Elongation (% In 1“) | 6 | 10 | 7 | 7 | 7 | 5 |
| Proportional Elastic Limit (PSI) | 45,000 | 52,000 | 46,000 | 45,000 | 44,000 | 45,000 |
| Magnetic Properities | Nil | Slightly Magnetic | Slightly Magnetic | Nil | Slightly Magnetic | Slightly Magnetic |
| ASTM-B-459-67 | Grade1 Type Ⅱ && Ⅲ | Grade1 Type Ⅱ && Ⅲ | Grade2 Type Ⅱ && Ⅲ | Grade3 Type Ⅱ && Ⅲ | Grade3 Type Ⅱ && Ⅲ | Grade4 Type Ⅱ && Ⅲ |
Applications
- Contact and electrode materials
- High temperature furnace component
- Head sink
- EDM electrode
- Arc contact
Properties
- Low thermal expansion
- High Density
- Radiation Absorption
- High thermal and electrical conductivity
- High arc resistance
- Hardness and Wear Resistance
