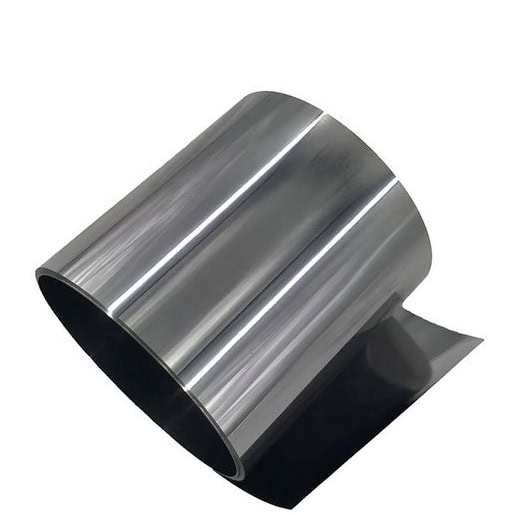

Molybdenum sheets are critical in industries like aerospace, nuclear energy, and electronics due to their high melting point, corrosion resistance, and thermal conductivity. But what makes one sheet perform better than another? The answer lies in its alloying elements and trace impurities. This article breaks down the science behind molybdenum sheet composition, offering actionable insights for engineers and procurement teams.
1. The Core Composition: Pure Molybdenum vs. Alloyed Variants
Pure molybdenum sheets (99.95% Mo) are the baseline, but most industrial applications use alloyed variants like TZM (Titanium-Zirconium-Molybdenum) or MoLa (Lanthanum-Doped Molybdenum).
Why Alloying Matters
- TZM adds 0.4–0.55% Ti, 0.08–0.12% Zr, and 0.01–0.04% C, improving recrystallization resistance and strength at high temperatures.
- MoLa incorporates 0.1–0.4% La, reducing ductile-to-brittle transition temperature (DBTT) and enhancing weldability.
Our 2025 Case Study: A satellite manufacturer switched from pure Mo to TZM sheets, reducing thermal creep by 40% in orbital tests.
Comparison Table: Pure Mo vs. TZM vs. MoLa
| Property | Pure Molybdenum | TZM Alloy | MoLa Alloy |
|---|---|---|---|
| Density (g/cm³) | 10.2 | 10.2 | 10.2 |
| Recrystallization Temp (°C) | 1000 | 1300 | 1150 |
| DBTT (°C) | -190 | -180 | -210 |
| Cost ($/kg) | $200–250 | $350–400 | $280–320 |
2. Trace Impurities: The Silent Performance Killers
Even trace amounts of oxygen (O), nitrogen (N), carbon (C), and iron (Fe) can degrade molybdenum sheet properties.
Critical Impurity Limits
- Oxygen: >50 ppm causes embrittlement (ASTM B386 limits to <30 ppm).
- Carbon: >50 ppm forms carbides, reducing ductility.
- Iron: >100 ppm accelerates corrosion in acidic environments.
Real-World Example: A nuclear reactor component failed prematurely due to 80 ppm oxygen in the molybdenum sheet, leading to a $5M replacement cost.
Step-by-Step Guide to Analyze Molybdenum Sheet Purity
- Sample Prep: Cut a 1 cm² section from the sheet edge.
- Acid Digestion: Dissolve in HNO₃ + HCl (aqua regia) for 24 hours.
- ICP-OES Analysis: Measure O, N, C, Fe, and other trace elements.
- Density Check: Compare with theoretical density (10.2 g/cm³).
- Microstructure Inspection: Use SEM to detect carbides or inclusions.
3. Alloying Elements: Boosting Performance
A. Titanium (Ti) & Zirconium (Zr) in TZM
- Ti forms fine carbides, pinning grain boundaries and delaying recrystallization.
- Zr improves high-temperature strength by reducing oxygen embrittlement.
Fun Fact: TZM sheets retain 80% of their room-temperature strength at 1400°C, making them ideal for rocket nozzles.
B. Lanthanum (La) in MoLa
- La refines grain size, lowering DBTT by 30°C compared to pure Mo.
- Case Study: A medical imaging company used MoLa sheets for X-ray targets, reducing cracking by 25%.
C. Other Alloying Elements
- Tungsten (W): Increases density and hardness (used in MoW alloys for armor).
- Rhenium (Re): Enhances ductility at cryogenic temperatures (used in superconducting magnets).
4. Common Mistakes: Avoiding Costly Errors
Mistake #1: Overlooking Trace Impurities
- Warning: Even “high-purity” sheets may contain harmful impurities if not tested. Always request a Certificate of Analysis (CoA).
Mistake #2: Assuming All Alloys Are Equal
- Warning: TZM and MoLa have different strength-temperature profiles. TZM excels above 1200°C, while MoLa is better for low-temperature applications.
Mistake #3: Ignoring Fabrication Effects
- Warning: Rolling or forging can introduce impurities if not done in a vacuum. Specify vacuum annealing in your specs.
5. Advanced Testing: Beyond Basic Composition
A. Recrystallization Annealing Tests
- Heat the sheet to 1200°C for 1 hour, then measure grain size. ASTM E112 recommends <50 μm for critical applications.
B. Creep Resistance Testing
- Apply a constant load (e.g., 100 MPa) at 1000°C and measure deformation over time. TZM sheets typically show 50% less creep than pure Mo[5].
C. Corrosion Resistance in Molten Salts
- Immerse in a eutectic LiF-BeF₂ mixture at 650°C for 100 hours. MoLa sheets show 3x less corrosion than pure Mo.
6. Practical Checklist for Molybdenum Sheet Selection
- Verify alloy type (pure Mo, TZM, MoLa, etc.) matches your application.
- Check CoA for impurity levels (O <30 ppm, N <10 ppm, C <50 ppm).
- Request a sample for recrystallization and creep testing.
- Confirm fabrication method (vacuum melting, rolling, annealing).
- Compare suppliers’ quality control processes (ISO 9001, ASTM compliance).
Conclusion: Choosing the Right Molybdenum Sheet
The difference between a reliable molybdenum sheet and a failure-prone one often lies in 50 ppm of oxygen or 0.1% zirconium. Always prioritize:
- Alloy type: TZM for high temp, MoLa for low temp.
- Purity: Demand CoA with trace element limits.
- Testing: Validate performance with recrystallization and creep tests.
