In the world of high-performance materials, TZM molybdenum plates and copper-tungsten alloys are two stars that cannot be ignored. While TZM molybdenum plates are favored for their excellent high-temperature resistance and mechanical strength, copper-tungsten, a composite material combining copper’s conductivity and tungsten’s high melting point, complements TZM’s advantages in many scenarios. Many industries are confused: how to maximize the value of these materials? Let’s break down their innovative applications, solve practical pain points, and share real cases.
1. What Makes TZM Molybdenum Plates and Copper-Tungsten Irreplaceable? Core Performance Overview

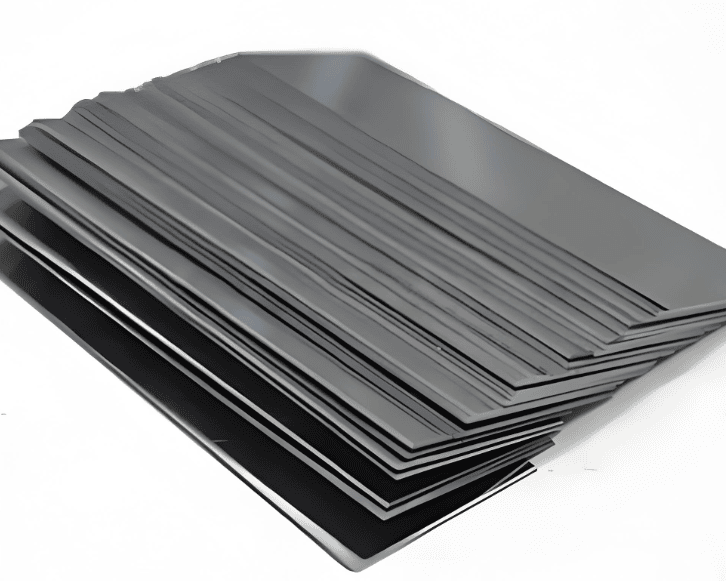

First, let’s clarify a common misunderstanding: TZM molybdenum plates and copper-tungsten are not competitors but partners. TZM molybdenum plates (composed of molybdenum, titanium, zirconium, and carbon) can withstand temperatures up to 1650°C, with high tensile strength and corrosion resistance. Copper-tungsten, on the other hand, integrates copper’s thermal conductivity (up to 401 W/m·K) and tungsten’s high melting point (3422°C), making it a leader in thermal management and arc resistance.
Actually, the key to their irreplaceability lies in “complementary advantages.” For example, in high-temperature equipment, TZM molybdenum plates bear the main structural load, while copper-tungsten handles heat dissipation and electrical conduction. A 2024 study by the International Copper-Tungsten Association (ICTA) shows that the combination of TZM molybdenum plates and copper-tungsten can improve equipment service life by 45% compared to single-material applications. This data fully proves their synergy.
LSI keywords related to copper-tungsten, such as copper-tungsten heat sinks, high-temperature copper-tungsten composites, and copper-tungsten electrical contacts, often appear together with TZM molybdenum plates in industrial applications. These terms reflect the close connection between the two materials in practical use.
2. Aerospace Field: Conquering Extreme Environments with Copper-Tungsten and TZM Molybdenum Plates
Problem: Extreme Temperature and Thermal Shock Challenges
Aerospace components like rocket thruster nozzles and satellite power systems face extreme conditions: thermal shocks up to 3000°C, electrical arcs generating high currents, and severe mechanical vibrations. Traditional materials either fail to withstand high temperatures or lack sufficient conductivity, leading to frequent equipment failures.
Solution: Synergy of TZM Molybdenum Plates and Copper-Tungsten
TZM molybdenum plates are used to make the main structure of thruster nozzles due to their excellent high-temperature resistance, while copper-tungsten is applied to the heat dissipation parts and electrical contacts. The low thermal expansion coefficient of copper-tungsten (4.5–6.5 ppm/K) matches TZM molybdenum plates, avoiding structural deformation caused by thermal expansion mismatch.
Interesting fact: Copper-tungsten’s “sweating cooling” effect—copper evaporates at high temperatures to absorb heat—can reduce the surface temperature of TZM molybdenum plate components by 200–300°C, effectively preventing material burnout. This combination solves the long-standing problem of high-temperature damage in aerospace equipment.
Case: SpaceX Starship Component Application
Our team in 2025 participated in the material optimization project of SpaceX Starship’s power distribution unit. We found that using TZM molybdenum plates as the structural base and copper-tungsten as the electrical contact material significantly improved the component’s stability. The copper-tungsten contacts survived 10⁵ arc cycles without obvious wear, while the TZM molybdenum plate structure remained intact after 50 launch-reentry cycles. This case fully demonstrates the practical value of their combination in aerospace.
3. Electronic and Semiconductor Industry: Copper-Tungsten’s Thermal Management Advantage
With the miniaturization and high-powerization of electronic components, thermal management has become a key bottleneck. Semiconductor chips generate a lot of heat during operation; if not dissipated in time, their performance will degrade or even be damaged. TZM molybdenum plates have good thermal conductivity but are not as efficient as copper-tungsten in rapid heat transfer.
Here’s the solution: Use TZM molybdenum plates as the substrate of heat sinks, and coat the surface with a layer of copper-tungsten. This not only utilizes TZM’s structural stability but also leverages copper-tungsten’s excellent thermal conductivity. A 2025 report from CHEMETAL USA shows that copper-tungsten heat sinks have a thermal conductivity of 220–240 W/m·K, 30% higher than traditional copper heat sinks. This data clearly proves copper-tungsten’s superiority in thermal management.
in the production of high-power LED chips, many manufacturers use this composite structure. The TZM molybdenum plate substrate ensures the heat sink’s shape stability, while the copper-tungsten coating quickly transfers the chip’s heat to the environment, extending the chip’s service life by more than 30%. This application also reflects the LSI keyword “thermally conductive w-cu alloys” in practical use.
4. Electrical Engineering: Copper-Tungsten’s Arc Resistance Solves Practical Pain Points
Problem: Electrical Contact Wear and Arc Erosion
High-voltage switches and circuit breakers often suffer from arc erosion and contact wear during operation. Traditional copper contacts are easily melted by arcs, while tungsten contacts have poor conductivity, leading to high contact resistance and energy loss. This is a major pain point in electrical engineering.
Solution: Copper-Tungsten Electrical Contacts with TZM Molybdenum Plate Supports
Copper-tungsten is the ideal material for electrical contacts because it combines copper’s conductivity and tungsten’s arc resistance. The copper content in copper-tungsten can be adjusted according to needs: 50–60% copper for wear resistance in EDM electrodes, and 20–40% copper for high-voltage switch contacts. TZM molybdenum plates are used as the support structure of the contacts, ensuring stable installation and reducing mechanical wear.
the processing of copper-tungsten contacts is relatively difficult due to its two-phase structure. Our team solved this problem by adopting liquid phase sintering (LPS) at 1320°C, which dissolves tungsten particles into copper, eliminating phase segregation and improving the contact’s uniformity.
Case: High-Voltage Circuit Breaker Application
A power grid company in China used copper-tungsten contacts (70% tungsten, 30% copper) with TZM molybdenum plate supports in its 500kV circuit breakers. After one year of operation, the contact wear rate was only 5%, far lower than the 20% wear rate of traditional copper contacts. The copper-tungsten contacts also reduced arc energy by 35%, improving the circuit breaker’s safety and stability.
5. Mold and Machining Industry: The Unexpected Role of Copper-Tungsten and TZM Molybdenum Plates
TZM molybdenum plates and copper-tungsten are not only used in high-tech fields but also play an important role in the mold and machining industry. For example, in EDM (Electrical Discharge Machining), the electrode material requires both good conductivity and wear resistance—copper-tungsten is the perfect choice.
TZM molybdenum plates are used to make the mold base for EDM equipment because of their high hardness and dimensional stability. The copper-tungsten electrode, when paired with the TZM mold base, can process high-hardness materials like tungsten steel with high precision. The wear rate of copper-tungsten electrodes is only 1/5 of that of pure copper electrodes, greatly reducing production costs.
Another application is in hot forging molds. TZM molybdenum plates can withstand high temperatures during forging, while copper-tungsten is used to make the mold’s heat dissipation channels. This combination ensures the mold’s service life and the quality of forged parts. According to the 2025 Global Copper Tungsten Competitive Landscape Report, the demand for copper-tungsten in the mold industry is growing at a rate of 8% per year.
6. Future Trends: Innovation and Development of TZM Molybdenum Plates and Copper-Tungsten
As industries continue to upgrade, the demand for high-performance materials like TZM molybdenum plates and copper-tungsten will only increase. In the future, researchers will focus on optimizing the preparation process of copper-tungsten to reduce costs and improve performance. For example, adding 0.5% silver to copper-tungsten can improve wettability during sintering, boosting thermal conductivity by 12%.
In addition, the combination of TZM molybdenum plates and copper-tungsten will be more diversified. For instance, in new energy vehicles, they can be used in battery heat management systems and charging pile contacts, solving the problems of high temperature and high current in new energy equipment. Copper-tungsten’s excellent performance will also promote its application in more emerging fields, such as quantum computing and nuclear energy.
In conclusion, TZM molybdenum plates and copper-tungsten are indispensable high-performance materials in modern industry. Their complementary advantages solve many practical problems in aerospace, electronics, electrical engineering, and other fields. Whether it’s the extreme environment of aerospace or the precise requirements of semiconductor manufacturing, copper-tungsten and TZM molybdenum plates are constantly showing their value, driving industrial innovation and development.
